Baseline Overland

1973-1987(91) SQUARE BODY CHEVY SILVERADO ROOF RACK

$1,495.00 USD
$1,495.00 USD
Sale Sold out
Shipping calculated at checkout.
Model
Style

This all aluminum roof rack, expands your roof storage area to over 5 ft! (Crew Cab). Designed for form and function to get the most out of your ultimate family hauler. Heavy Duty1/4" thick aluminum side panels, fairing and brackets. Black oxide stainless steel hardware.  Use the 11 T-slotted aluminum extrusion to mount almost anything and free up cargo space. Installation requires drilling and installing "rivnuts" into the roof panel. Professional installation recommended.


Rack sits ~2" from the highest point of the back of the center roof hump.

  • 1/4" aluminum side rails and fairing
  • Extruded aluminum rails
  • Easy bolt together installation
  • Sunroof tilt function works with rack
  • Fairing Edge Trim Included
  • Light Textured Black Powder coat finish
  • Black Oxide Stainless Steel Hardware
  • Made in the USA
  • Free shipping!

ESTIMATED LEAD TIME  - ~4-6 WEEKS
Lead times vary. Many orders can ship faster, but please confirm ahead of time if your order is time-sensitive.

COMPATIBILITY: 1973-1987 and 88-91K20/K30 Chevrolet Square Body Pickups
OVERALL DIMENSIONS: ~67” x 53-1/2”
LOAD RATING: 250 lbs dynamic, 750+ lbs static**
OVERALL WEIGHT: ~40LBS.

Includes all required hardware for assembly

**Rack load rating is more than the roof you are attaching it to. Rack is designed to hold items like, skis, bikes, traction boards, roof top tents, spare tire, ladders, shovels etc. Static Loads are parked/ non moving loads (i.e. sleeping in a roof top tent). Dynamic Load guidelines are based on normal highway driving. Off road driving, high speeds, large bumps,  off-camber forces, etc. can dramatically increase the dynamic forces applied to your rack and vehicle roof. Any loads beyond beyond the rating in your owner's manual are at your discretion. Capacity will be reduced by removing crossbars or based on their configuration or uneven loading of rack. Users are expected to exercise good judgement in loading and using the rack. Uplift forces (i.e. hauling a canoe or a directional change in force) should be avoided. Such items should be properly anchored to hood loops or other means to mitigate uplift forces.

Available for integrated KC Hilites Gravity Pro Light Bar or Baja Designs Linkable XL Light Bar.

Images of Suburbans are representative. Pictures coming soon!

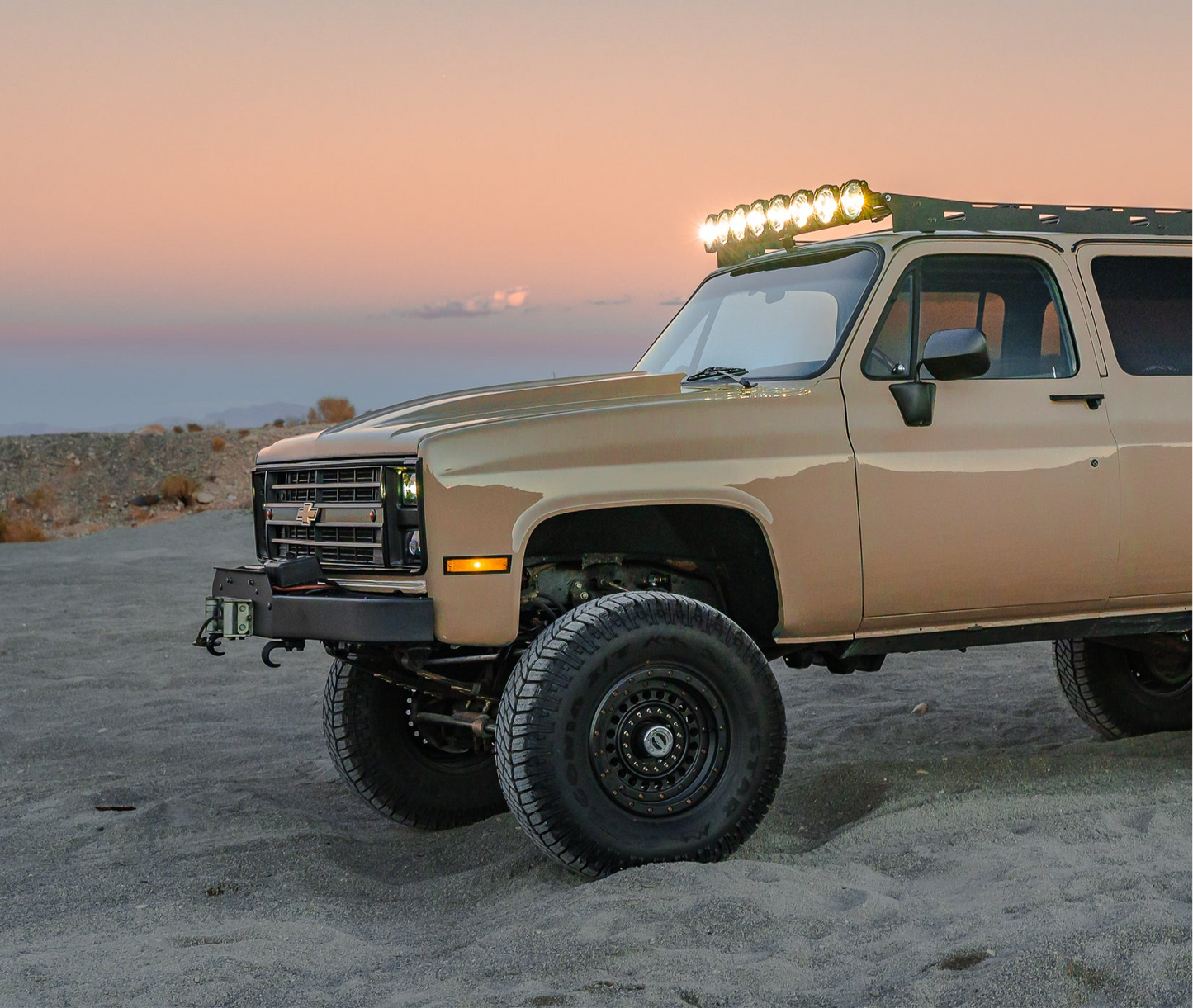

 Baseline Overland Roof Rack with integrated KC Hilites Light Bar

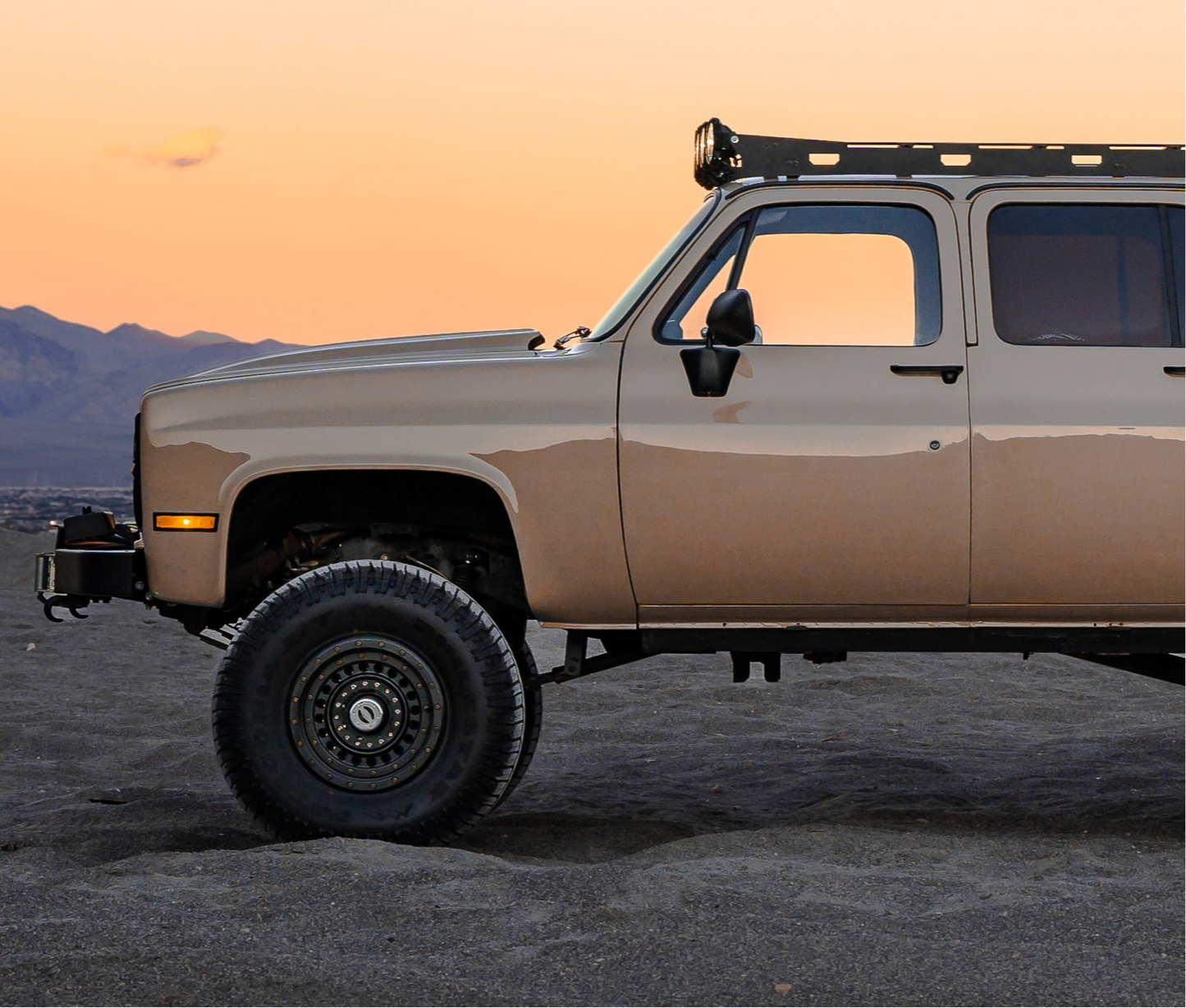

Available with standard front fairing that follows the roofline.



Brackets can be added to add KC or Baja Designs Light bar to the front fairing.



Fairing For Clearance Lights Available for 3/4 and 1 ton trucks equipped with cab lights.

Square Body Chevy Clearance Light Fairing for trucks with Cab Lights

Visit Hodson Motors YouTube Channel to learn more about this one of a kind 1986 Suburban with 12v Cummins, 4L80 trans, and Dana 60 axles
