Chassis Unlimited
1973-1987(91) CHEVY/GMC SQUARE BODY OCTANE DUAL SWING OUT REAR BUMPER FOR PICKUP/ BLAZER/ SUBURBAN 1500/2500/3500
Couldn't load pickup availability
PRODUCT FEATURES
- Bolt on spare tire mount for up to 40” wheel/tire
- Dual swing outs W/ 2 position locking
- Push button cam latch release system
- Ships fully assembled ready to install
- Manufactured from 3/16” USA Steel
- Includes LED License Plate Lights
- Recessed rear facing mounts for 3” LED Cube lights as back up lights (2)
- Each side of the bumper has integrated corner steps
- Includes heavy duty CNC Machined 1” Thick recovery points with a 1” Bore
- Designed & Manufactured in California
- Bumpers ships complete with 3-Stage Black Texture powder coat Finish
- LED LIGHTS, GAS CAN MOUNTS, SPARE TIRE, AND ACCESSORIES SOLD SEPARATELY

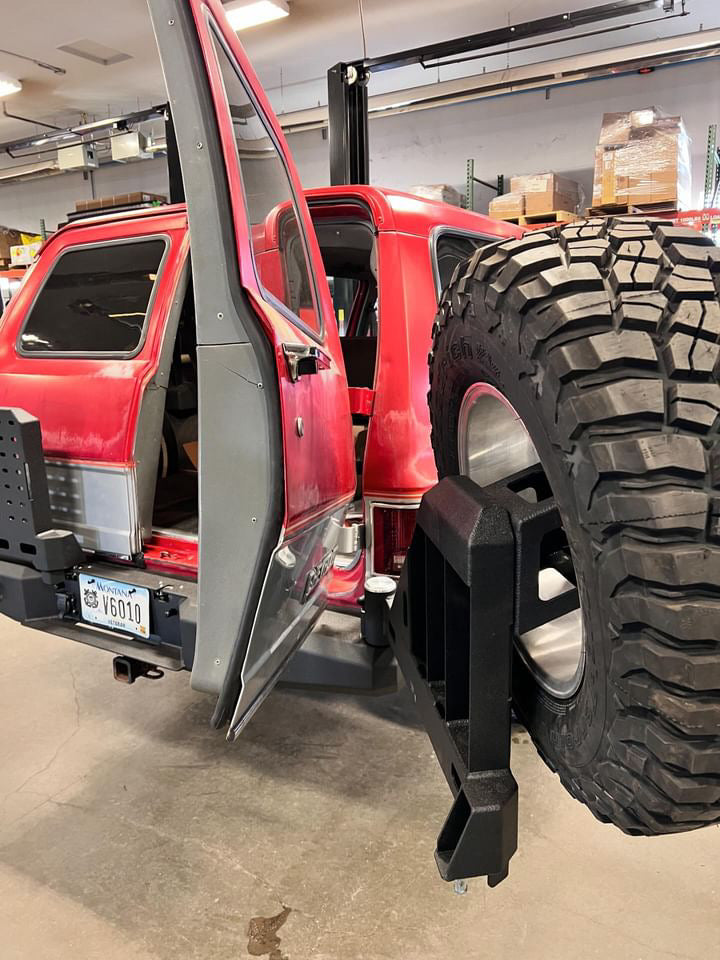

Fits Blazer, Pickup, and Suburbans. Barn Doors may not fully open.
PRODUCT DETAILS

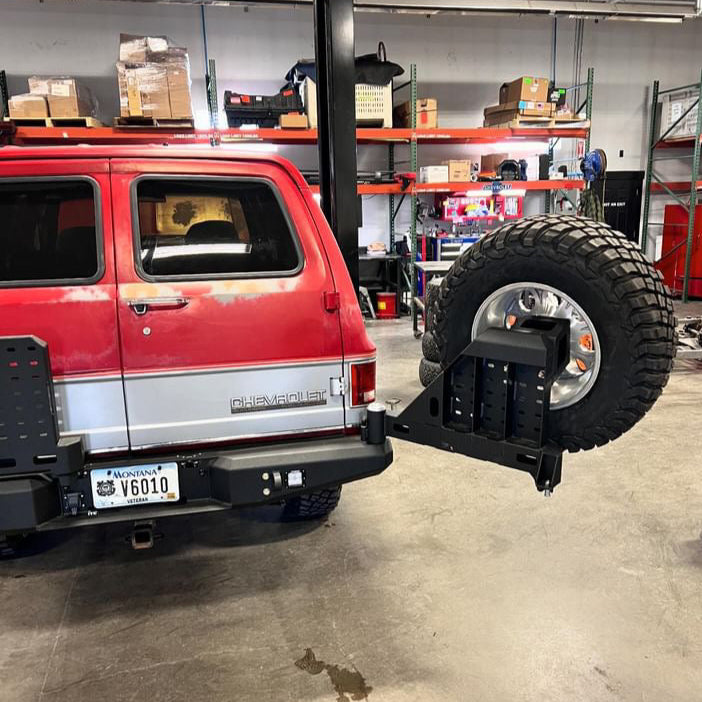

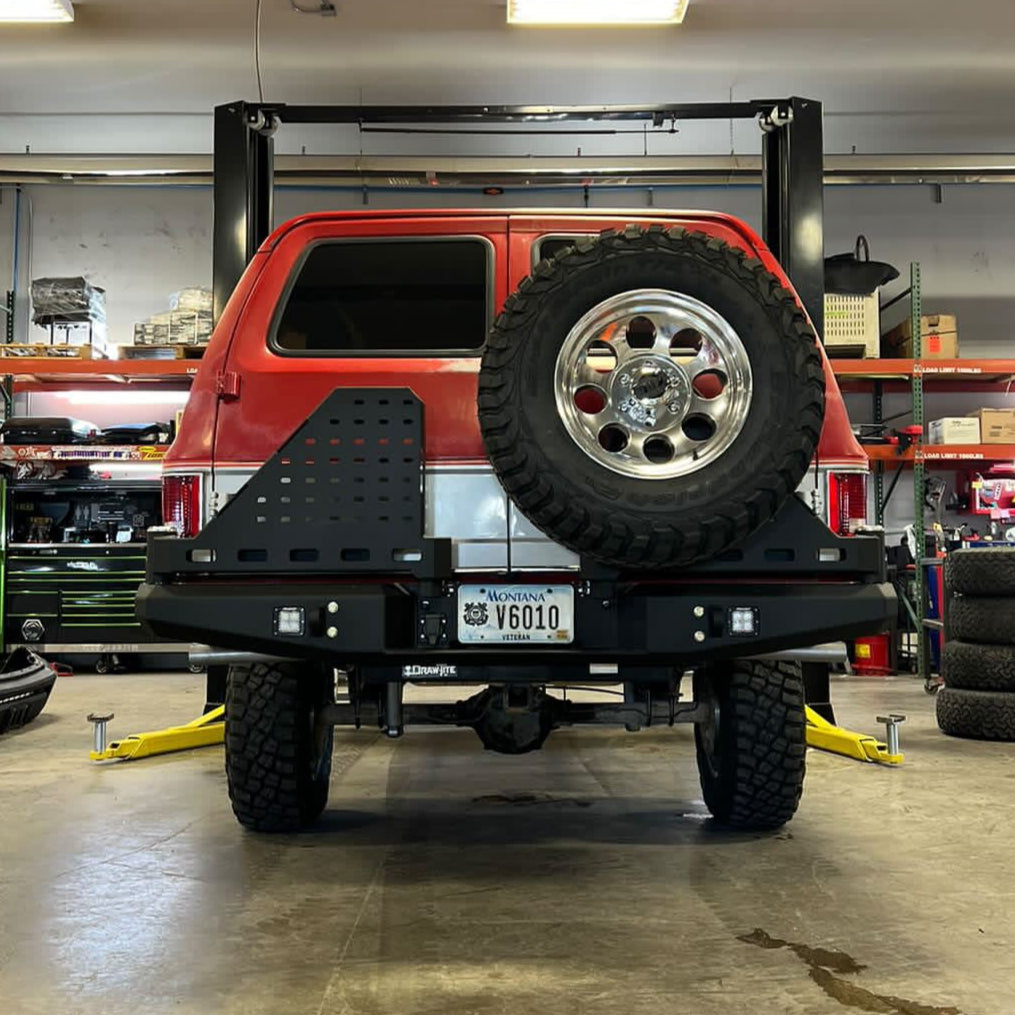

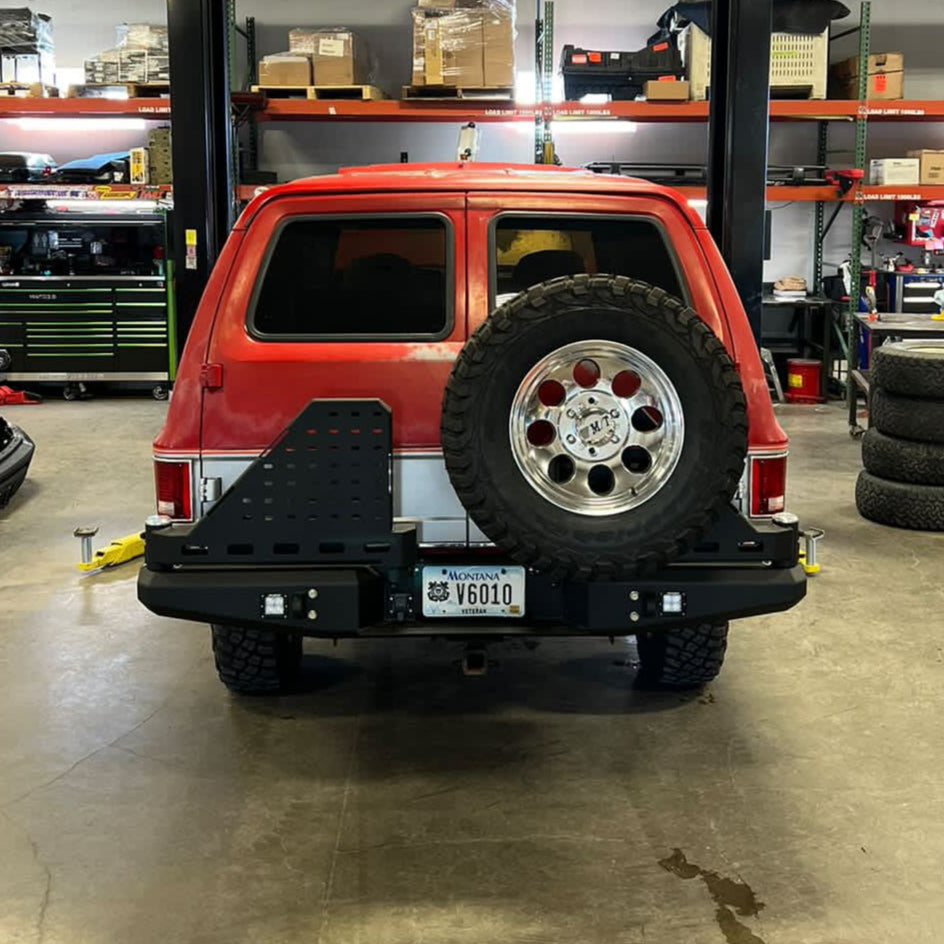

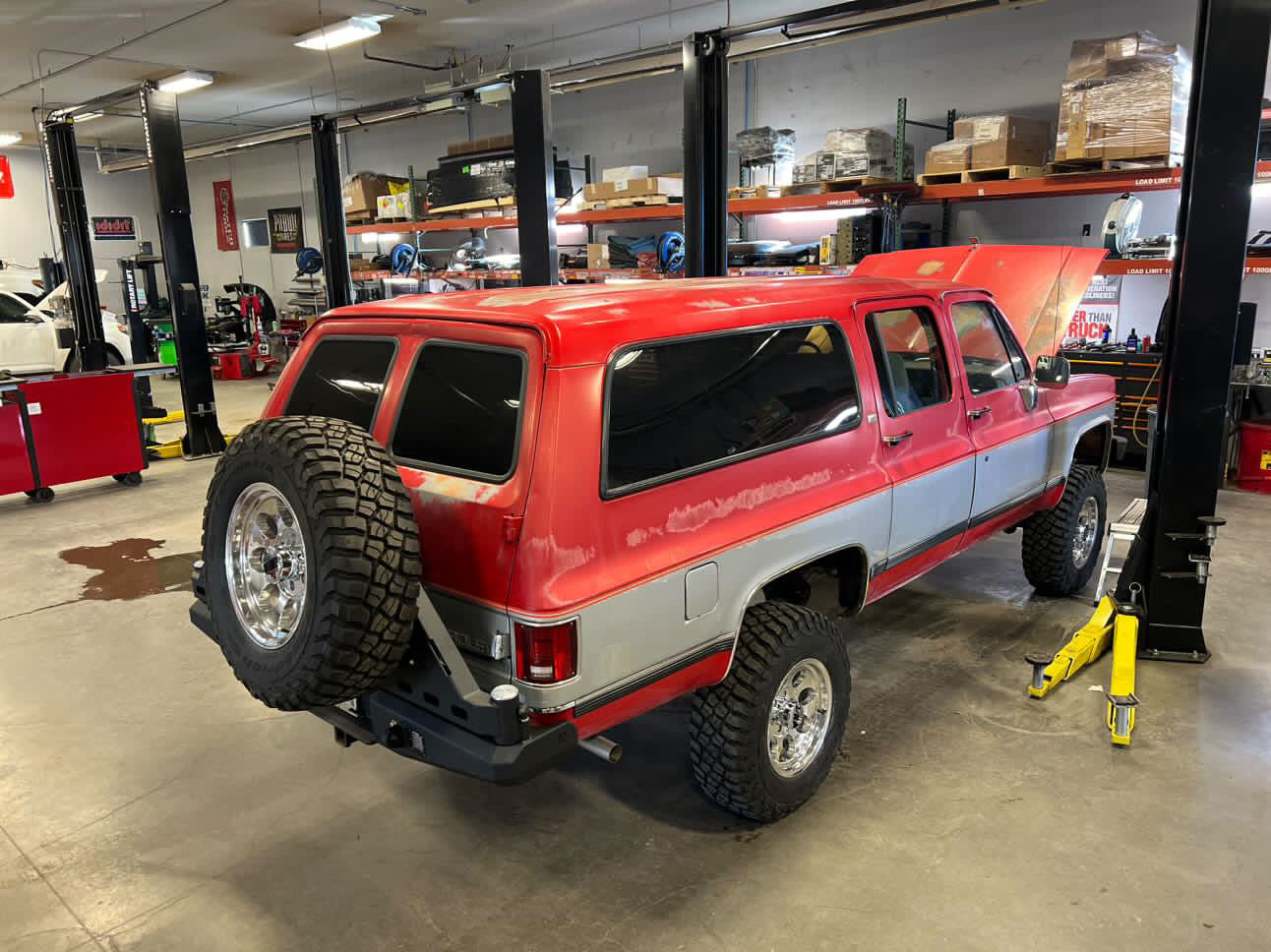

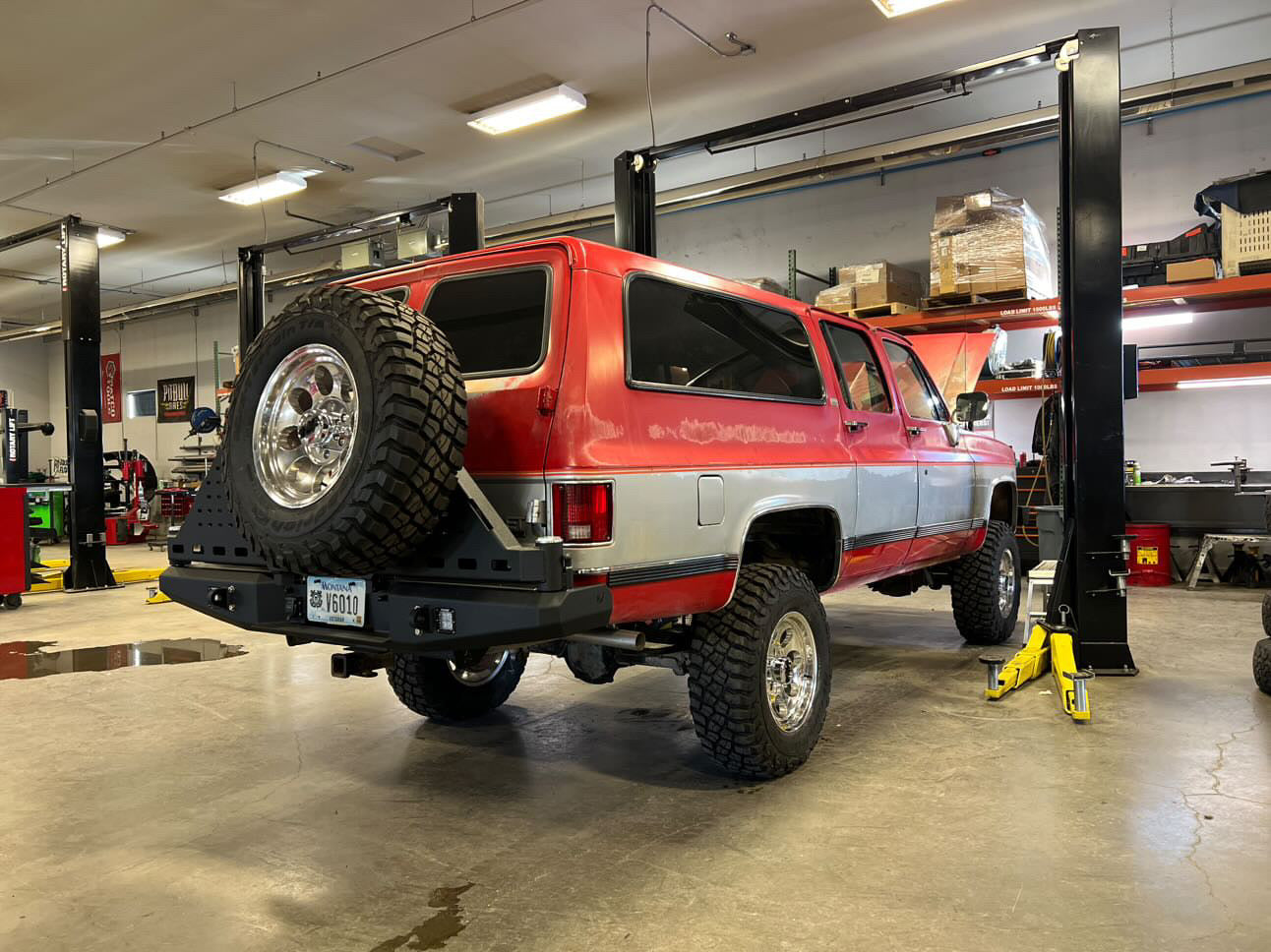

Chassis Unlimited “Octane Series” dual swing-out rear tire carrier bumper ships to your door ready to install on your truck, complete with a 3-Stage texture black powder coat. This is our direct bolt-on version, no cutting is required of your bed. Bumper Ships fully assembled ready to install.
The Octane series dual swing-out bumper is our premium rear tire carrier bumper. Double latching swing-out with slam bumpers allow a vibration-free swing out and an easy open/close using our push-button latch system. A secondary latch on the swing-out spindle also allows locking in 2 positions- closed and open, so you don’t need to worry about holding your swing-outs open while lowering your tailgate. Universal ½” Slots on both swing-outs allow you to mount up to a 40” Spare tire/wheel, and all your favorite accessories. One spare tire mount is included with the purchase of the bumper.

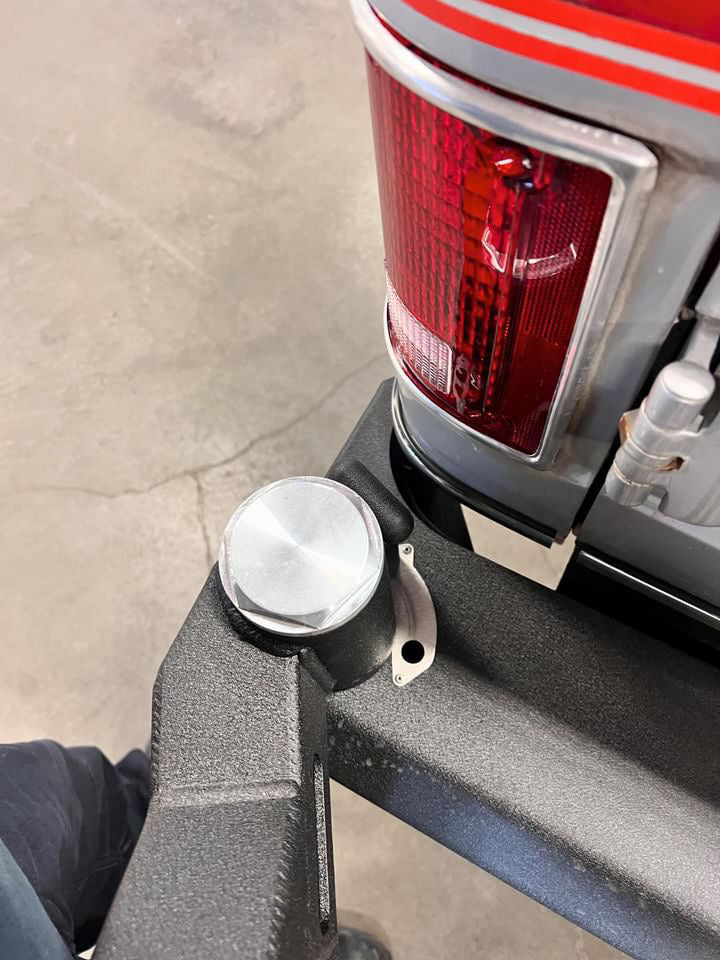

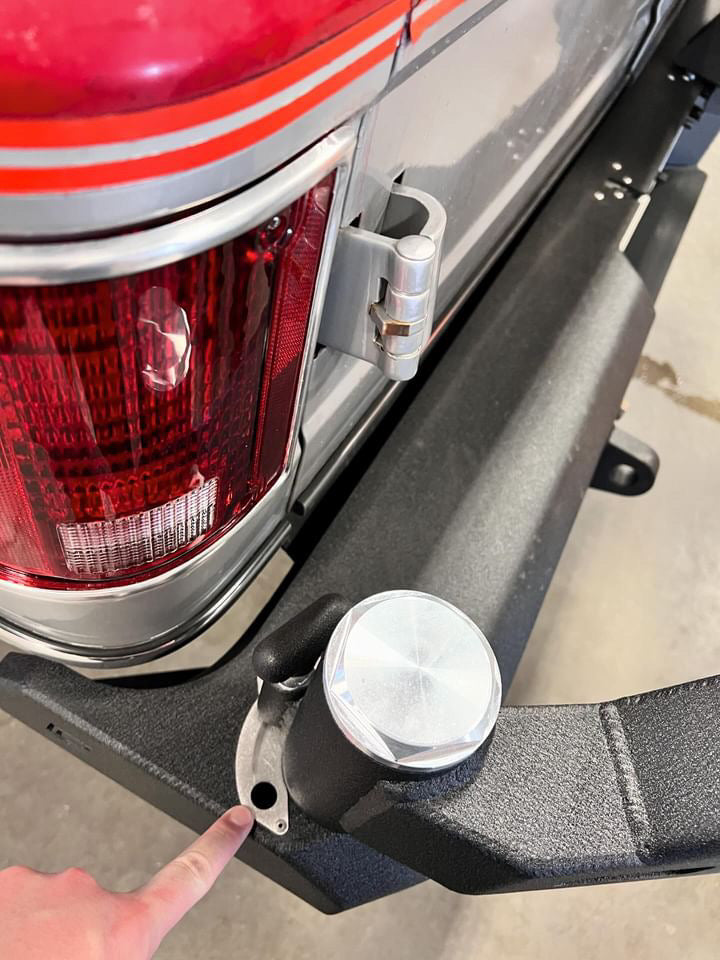

This dual swing-out tire carrier is manufactured with top-of-the-line components ensuring our product will last a lifetime of adventures. USA Premium rated hinge/spindles with billet aluminum caps, rubber bump stops ensuring a slam style close with no vibration, push-button cam style release latches, ½” Pin secondary close and open stop, Includes spare tire mount with studs.
The Octane series bumper brings an entire new style to the bumper market and offers an industry-first low-profile fitment with aggressive styling. The Octane series rear bumper is designed as a one-piece bumper, and ships as one unit ready to bolt to your vehicle. The rear bumpers also feature corner steps as well as a built-in center step for ease of access. All of Chassis Unlimited’s products are designed & manufactured in Livermore California.
Most installations are completed in a few hours or less with basic hand tools; the bumpers directly bolt onto your vehicle. Remove your factory bumper/mounts, and our product directly bolts onto your vehicle’s factory bumper mounting locations.
This Model Fits Pickups 1973 -1987 and Blazer/ Jimmy/ Suburban through 1991 K5, K10, K20, K30 and C Models with tailgates. Suburbans with barn doors have not been tested for fitment.
MADE TO ORDER IN ~8-16 WEEKS. LEAD TIMES ARE SUBJECT TO CHANGE
THIS PRODUCT REQUIRES FREIGHT SHIPMENT TO A BUSINESS WITH A DOCK OR FORKLIFT OR WILL BE DELIVERED TO THE NEAREST TERMINAL FOR PICKUP. AFTER PURCHASE YOU WILL BE CONTACTED TO CHECK FOR FREIGHT DELIVERY AVAILABILITY
