2007-2014 Chevy Tahoe Offset Rear Drawer System 3 for 2nd Row Seat- Offset 28W" and stacked 21W" X 43"L Drawers
This is the system we designed for our Yukon XL to create maximum modular functionality and versatile organization! Get Free Shipping in the lower 48 states!

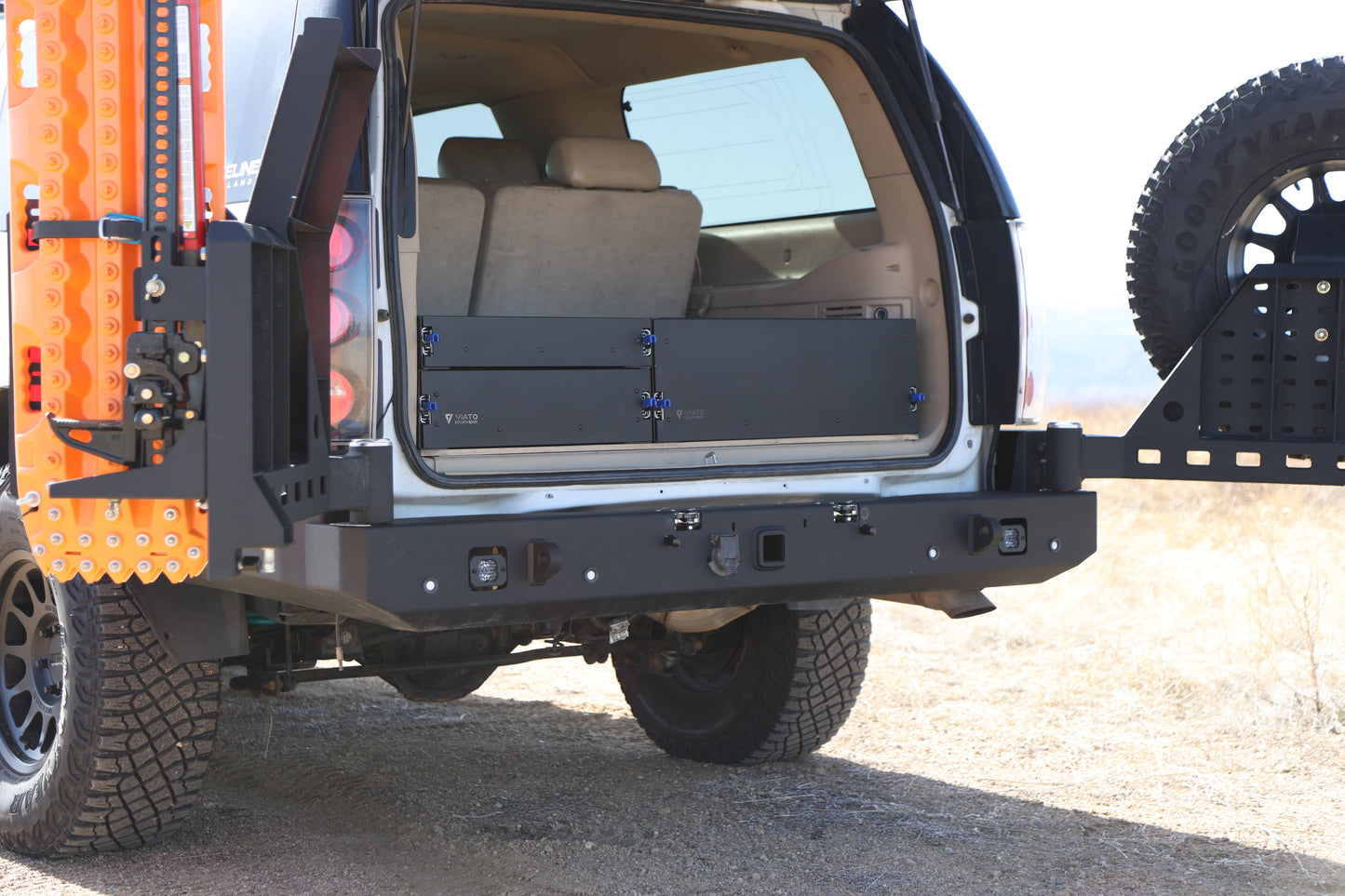

This system is designed for ultimate simplicity while maximizing space and functionality for the cargo area of your Chevy Tahoe with the 2nd Row Seat. Fabricated and shipped by Viato Equipment in approximately 6 weeks.
Includes Flat Rate Shipping to the lower 48 states.

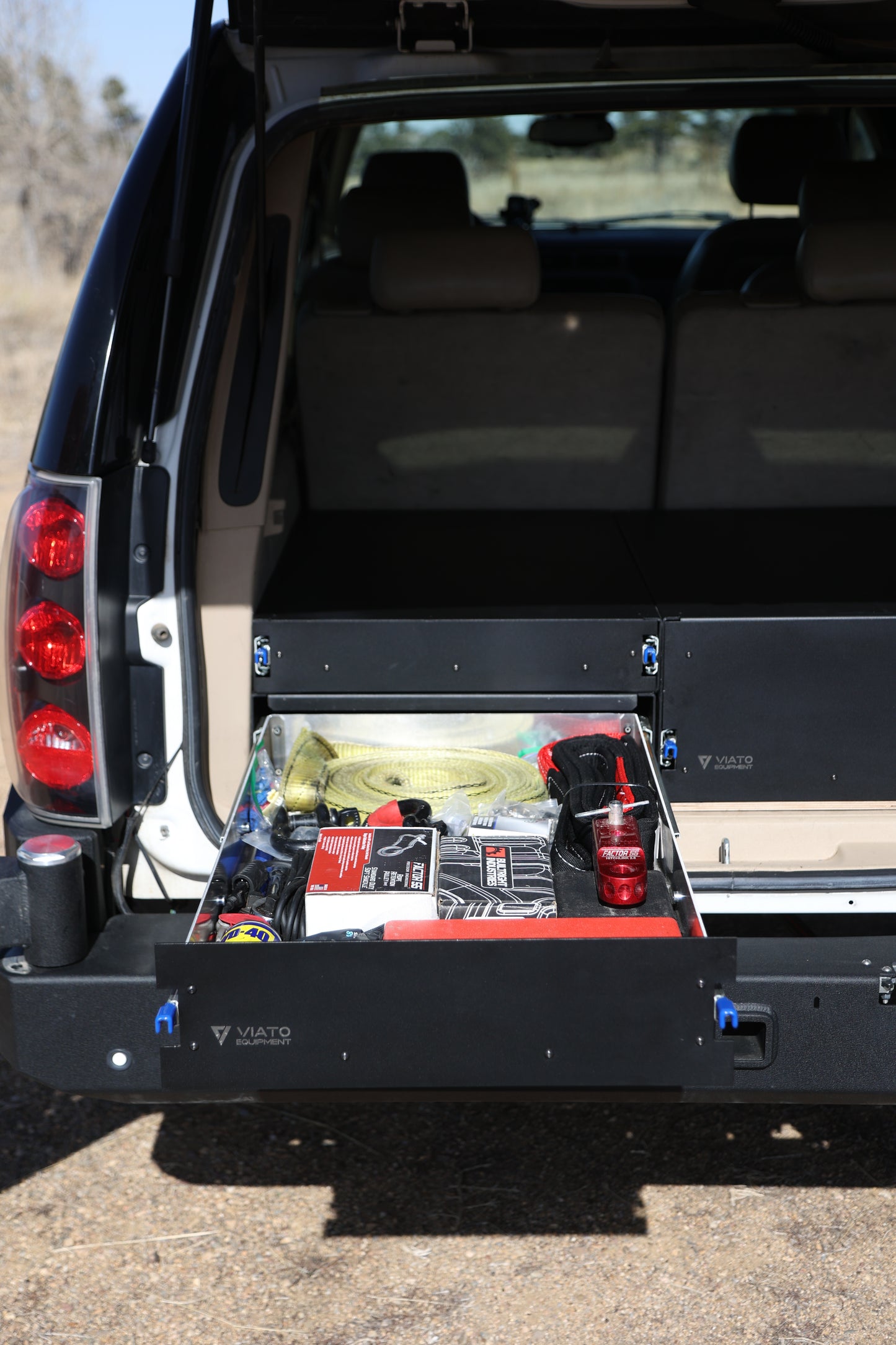

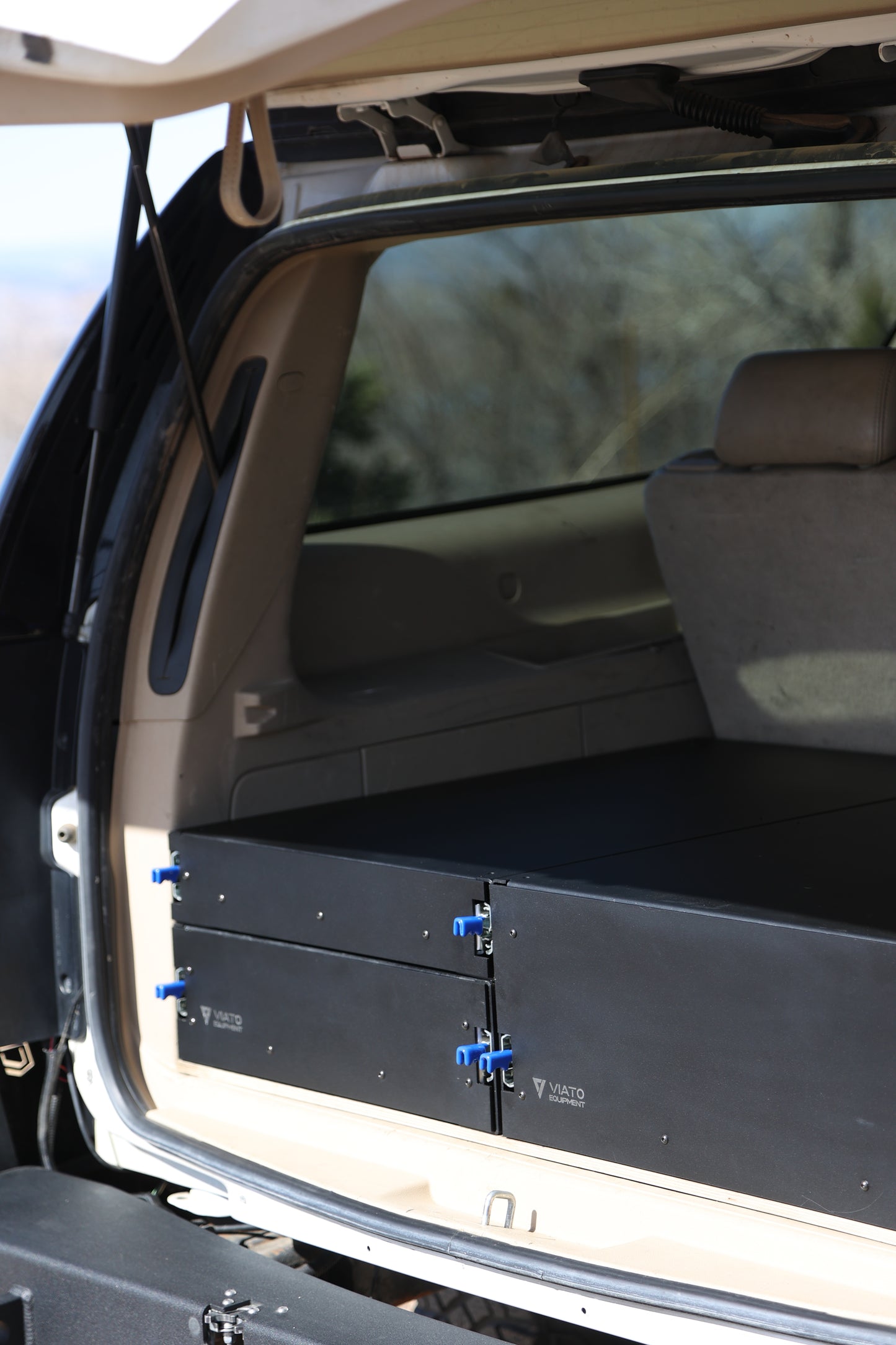

The Double Offset Drawer System is sleek and rugged with simplicity and functionality in mind. Features one 28" wide drawer and two stacked 21" wide drawers giving you one side to handle those extra large items and the other keeps things organized. The drawers are made from aluminum with zinc-plated steel heavy-duty lock-in/lock-out drawer slides. Space is maximized by using thin, yet strong, aluminum boxes. Don't give up wasted space and added weight with bulky wood drawers and drawer boxes! These drawers will net 2.5" or more of useable drawer width and 30L or more of valuable storage space over other drawer systems!
Drawers are 10" tall. Includes baseplate for solid attachment and rugged protection for a system level with folded 3rd row seats.
Includes Textured Powder coat Black Finish.
Features
- 5032-32 Aluminum Construction
- Heavy Duty Full Extension Lock-in/Lock-out Slides
- Slotted Attachment Points
- Packaging With Hole Layout Template Included
- Includes Base Plate

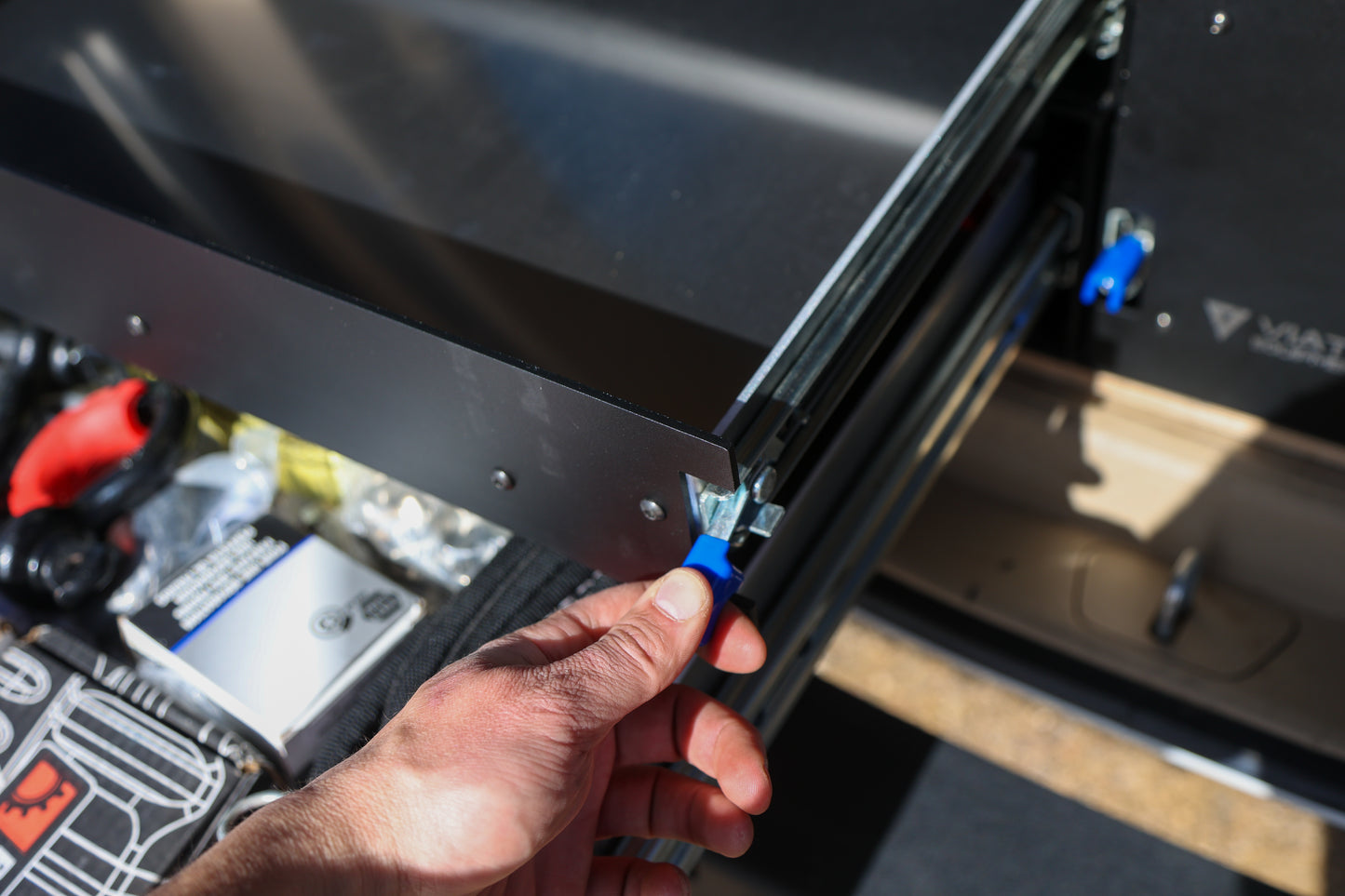

- Heavy duty drawer glides with Lock-in/ Lock-out
Dimensions and Weight

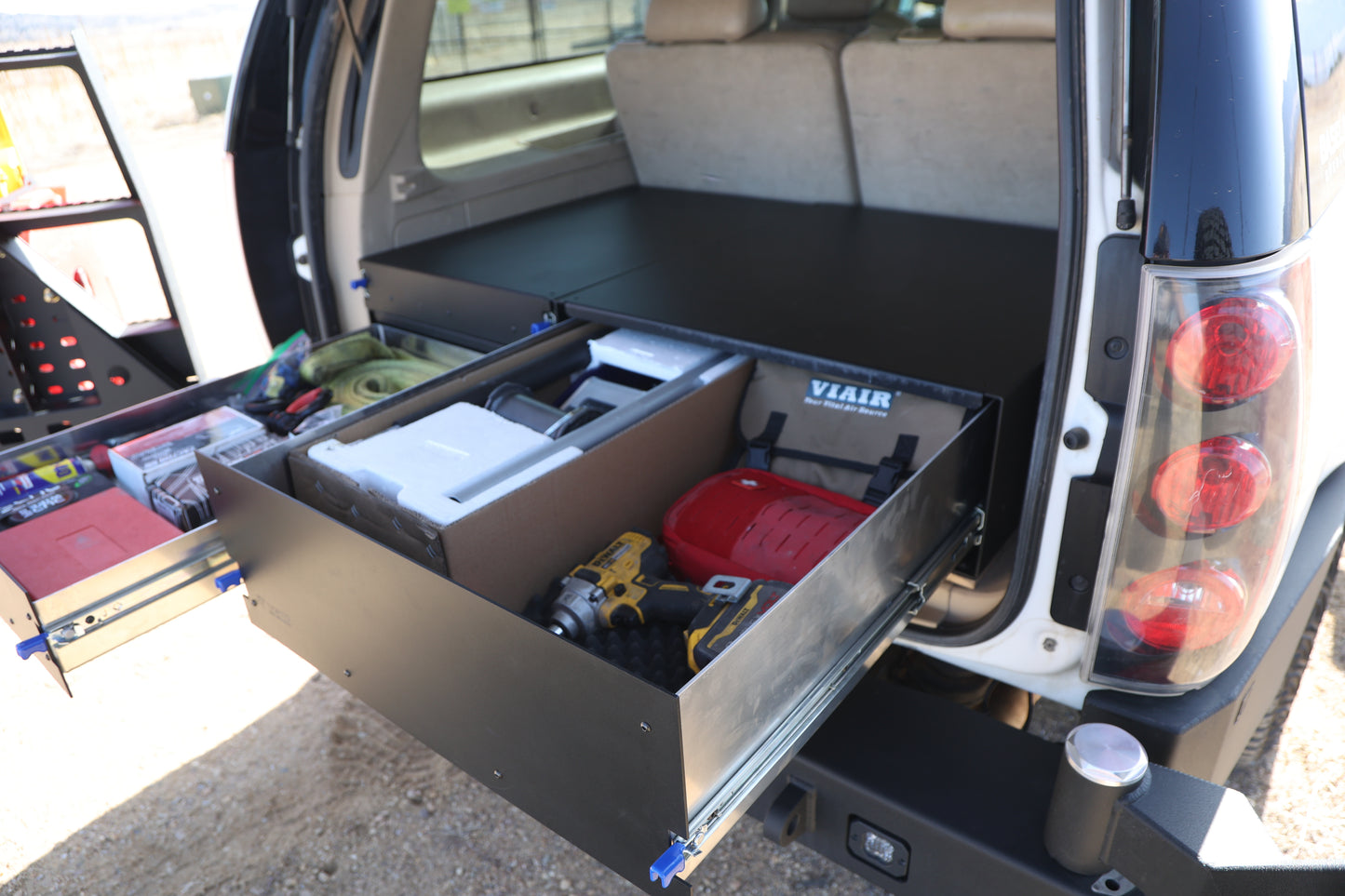

Drawer 1 - Maximum utility!
- Outside Dimensions: 10"H x 28"W x 43"L (Including Levers)
- Inner Drawer Box Dimensions: 8.25"H x 26.07"W x 41.17"L
- Inner Drawer Box Volume: 150L
- Weight: ~58lbs (estimated)
- Drawer Open Distance: 41.5"

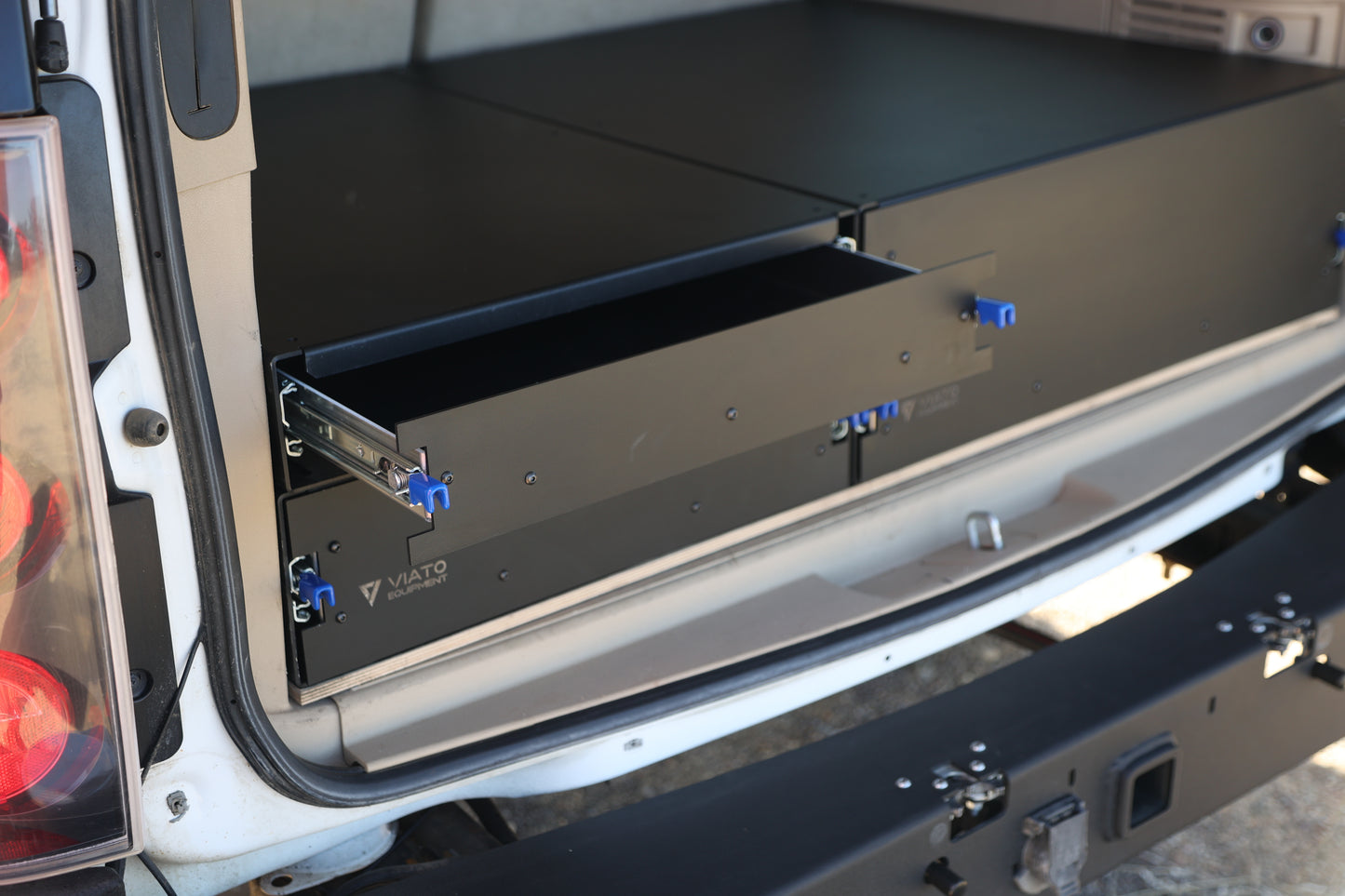

Drawer 2
- Outside Dimensions: 6"H x 21"W x 43"L (Including Levers)
- Inner Drawer Box Dimensions: 4.25"H x 19.07"W x 41.17"L
- Inner Drawer Box Volume: ~55L
- Weight: ~30lbs
- Drawer Open Distance: 41.5"

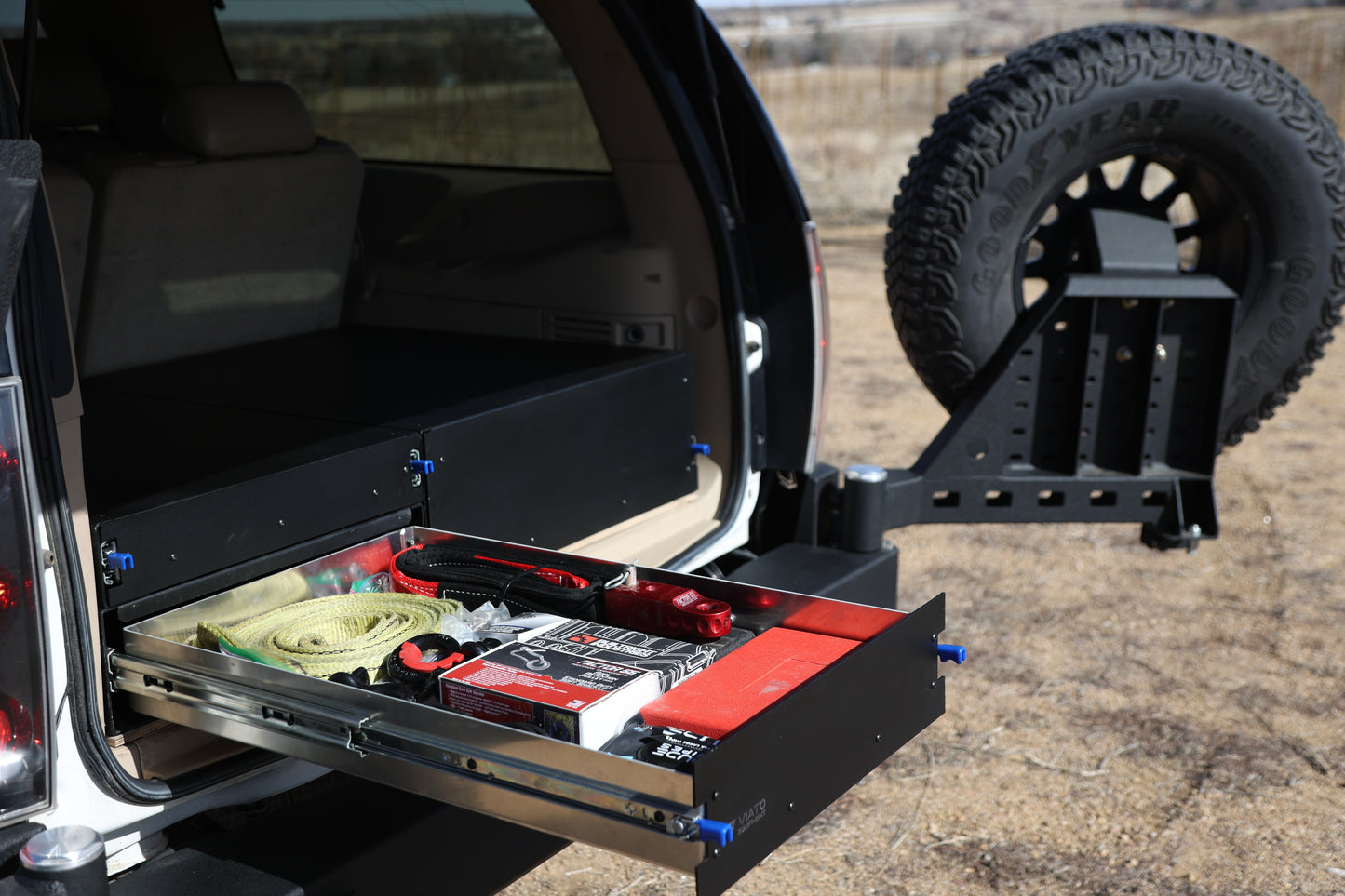

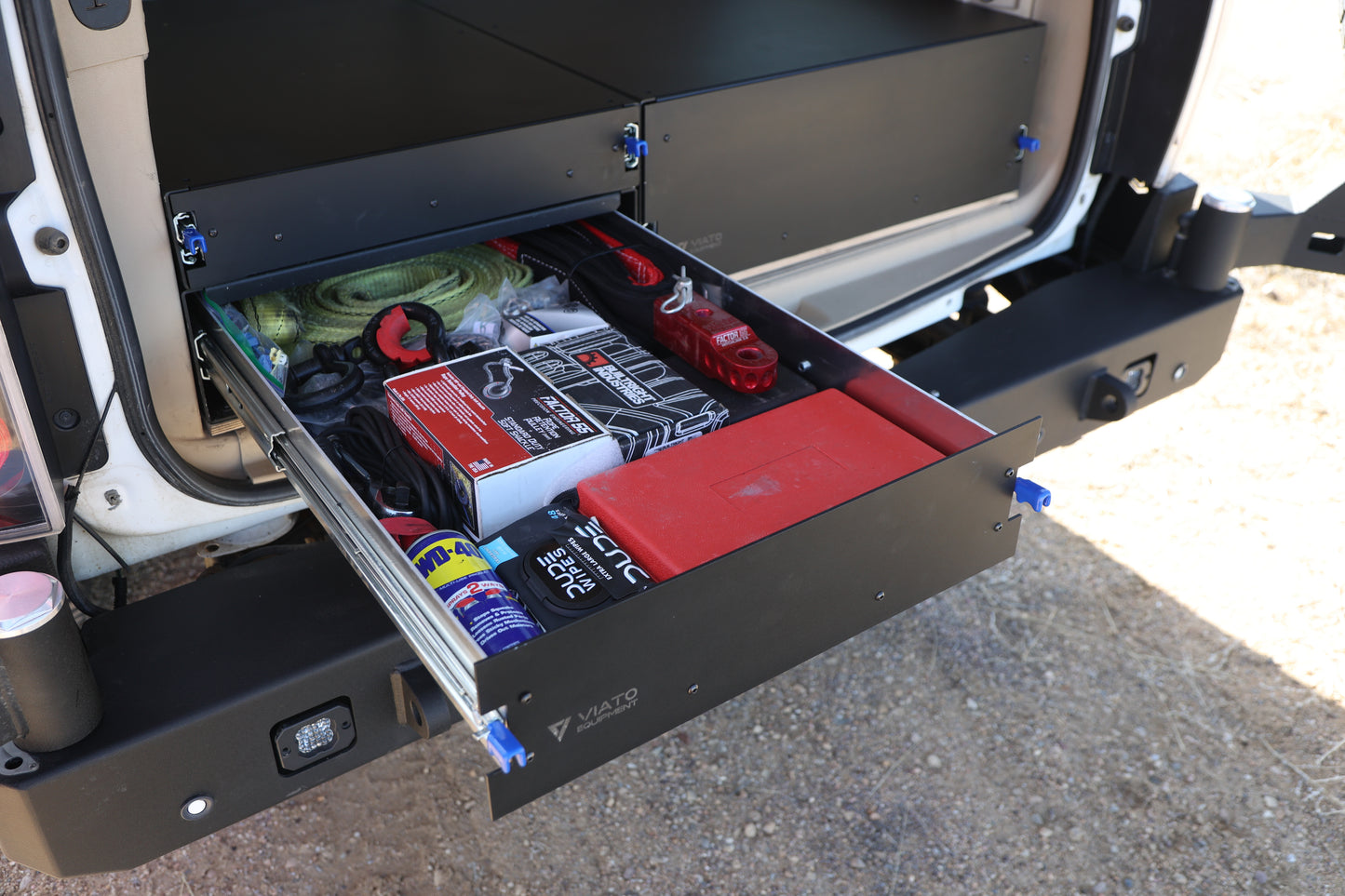

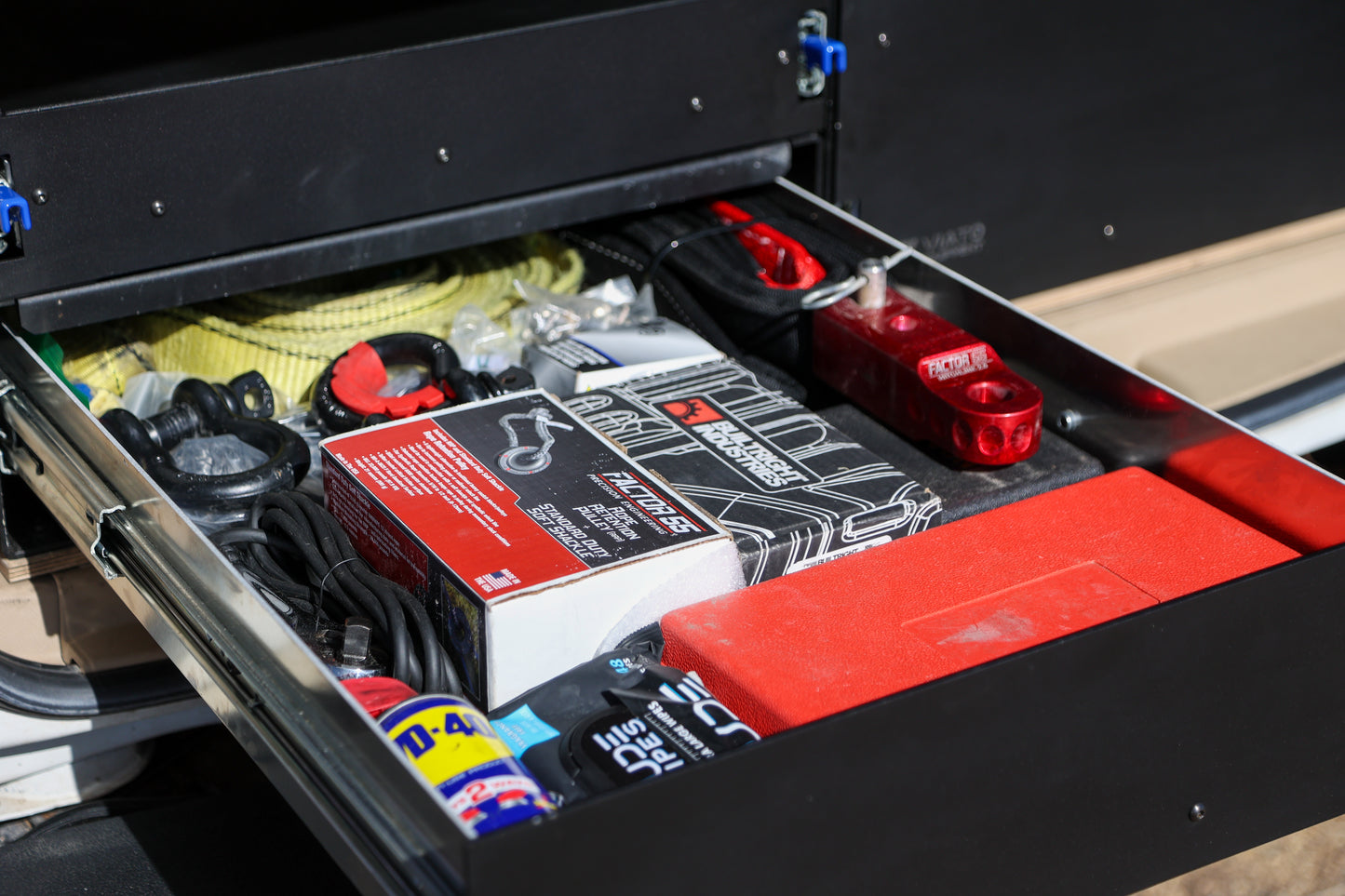

Drawer 3 - Pull Out Tray - Great for organizing tools!
- Outside Dimensions: 4"H x 21"W x 43"L (Including Levers)
- Inner Drawer Box Dimensions: 2.25"H x 19.07"W x 41.17"L
- Inner Drawer Box Volume: ~65L
- Weight: ~28lbs
- Drawer Open Distance: 41.5"
Includes base plate. Made with slip-resistant hex pattern phenolic laminate and a Baltic Birch core you won’t have to worry about the durability of the plate. By using wood, we have saved on the weight an aluminum floor would require to match the deflection levels of Baltic Birch.
Fabricated and shipped by Viato Equipment in approximately 6 weeks.
