Baja Designs

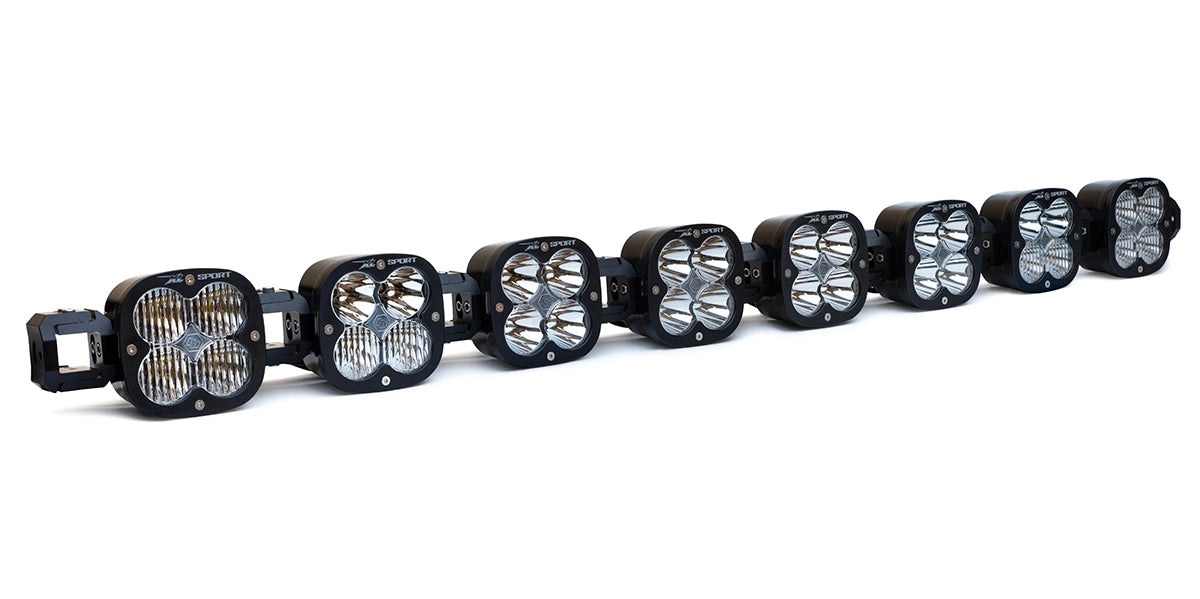

BAJA DESIGNS XL Linkable LED Light Bar - Universal

Regular price $1,802.95 USD
Regular price Sale price $1,802.95 USD
Sale Sold out
Shipping calculated at checkout.

DESCRIPTION

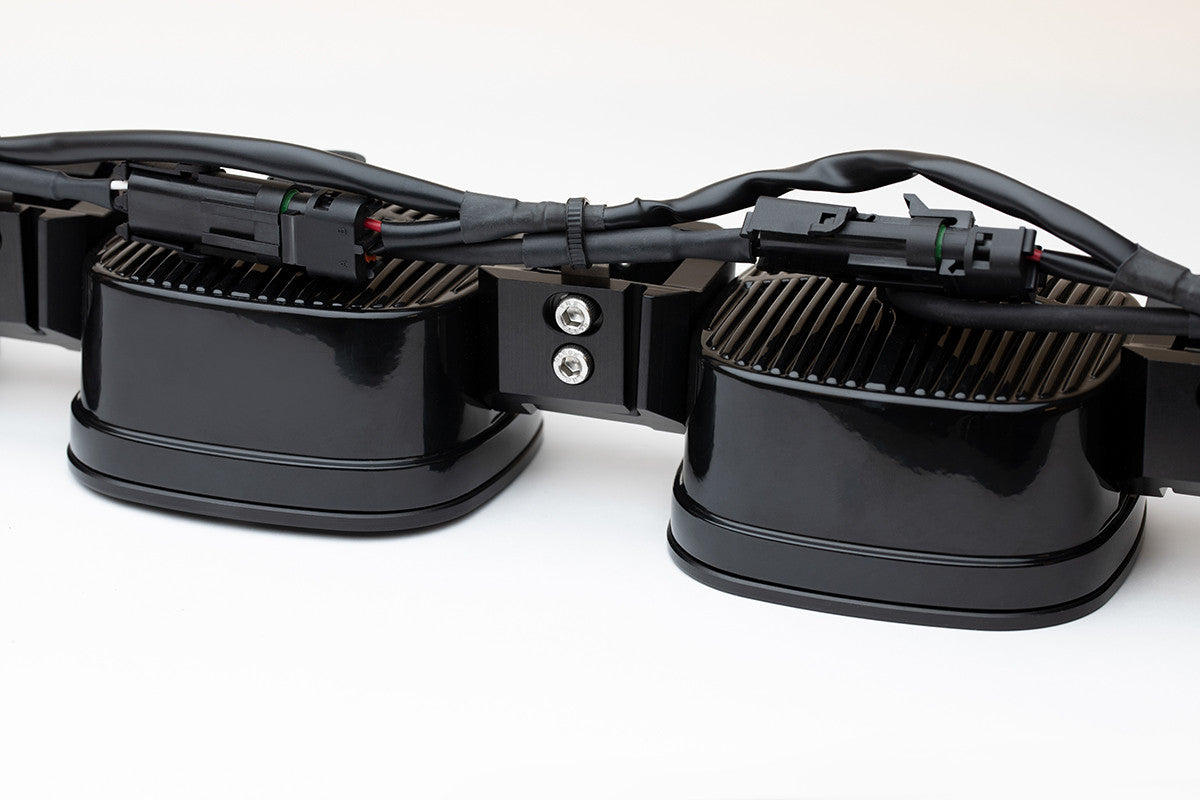

Full adjustment. Total Performance. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs. This kit includes 8 XL Sports, Links, and Rock Guards. This system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment allows for straight or arced configurations to perfectly match the lines of your vehicle. The wiring comes fully crimped and trimmed, allowing for easy install and the ability to add links down the road. If you're looking to have a lighting system that performs as well as it looks, this is the auxiliary light kit for you!

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Only LED Driven At 100 Percent

5000K Daylight – Less Driver Fatigue, Natural Color



SKU: 740006

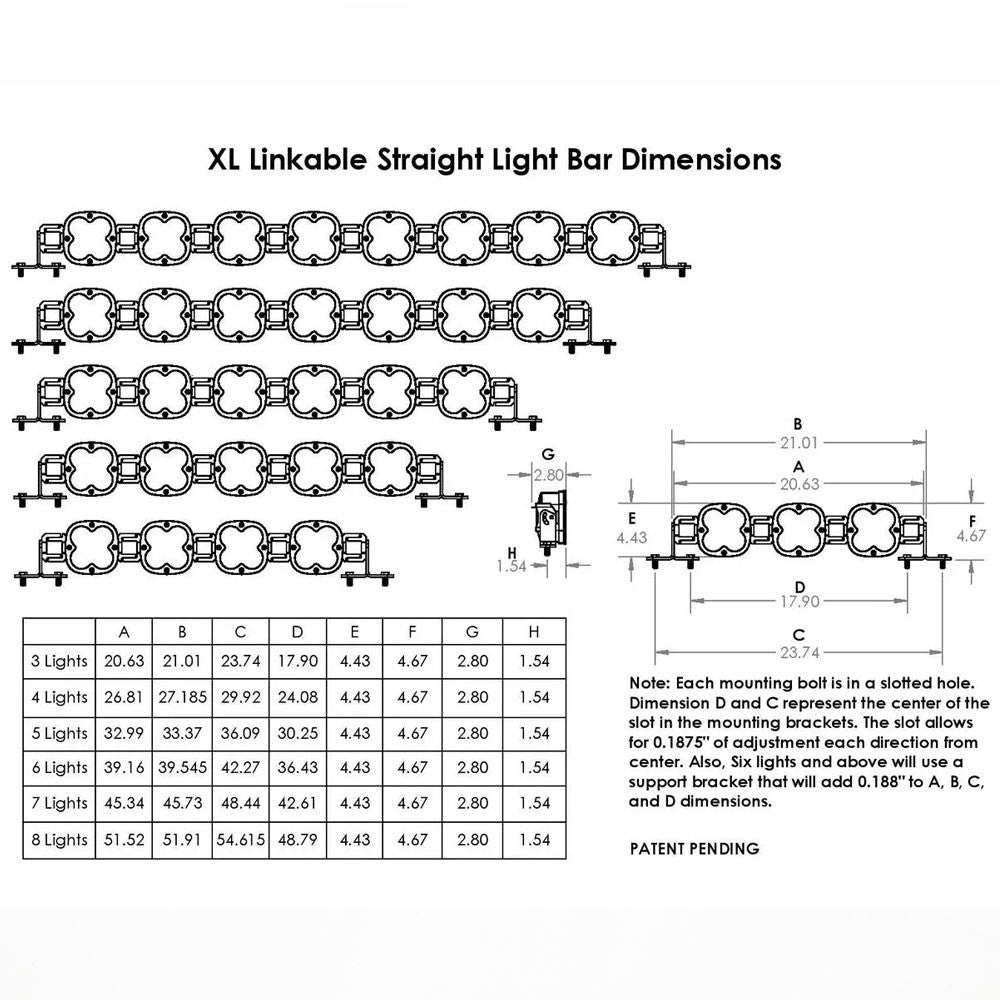

Dimensions

Depth (in.) 2.8
Height (in.) 4.43
Length (in.) 51.52

Specifications

Amperage Rating (A) 16
Average Rated Life (hr.) 49,930
Beam Pattern Multi-Pattern
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 25,200
Description 8XL Sport; Multi-Pattern; Clear
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 8
Lens Material Beam
Lighting Quantity 32
Lighting Type LED
Lighting Technology Forward Projecting
Mounting Hardware Description Pre-Load Kit; Links; Rock Guards
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type XL Linkable LED Light Bar
Universal or Specific Universal
Wattage (W) 208
Wiring Harness Included Yes

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
