2007-2014 Chevy Suburban Drawer System 2 for 3rd Row Seat - Offset 28W" and 21W" X 32"L Drawers
Couldn't load pickup availability
This system is designed for ultimate simplicity while maximizing space and functionality in the cargo area of your Chevy Suburban with the third row.
Includes Flat Rate Shipping to the lower 48 states.

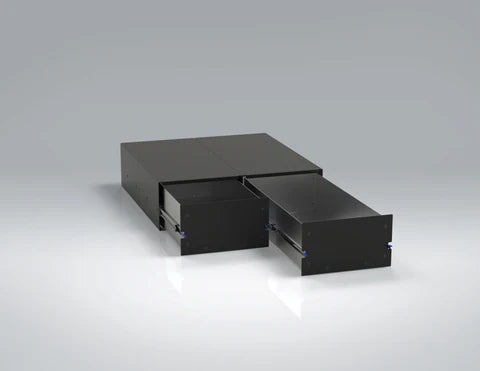

The Double Offset Drawer System is sleek and rugged with simplicity and functionality in mind. Features one 28" wide drawer and one 21" wide drawer giving you ones side to handle those extra large items. The drawers are made from aluminum with zinc-plated steel heavy-duty lock-in/lock-out drawer slides. Space is maximized by using thin, yet strong, aluminum boxes. Don't give up wasted space and added weight with bulky wood drawers and drawer boxes! These drawers will net 2.5" or more of useable drawer width and 30L or more of valuable storage space over other drawer systems!
Drawers are 10" tall. Includes baseplate for solid attachment and rugged protection for a system level with folded 3rd row seats.
Includes Textured Powdercoat Black Finish.
1) ea. 10"T X 21"W X 32"L w/ lock in lock out.
1) ea. Baseplate
Features
- 5032-32 Aluminum Construction
- Heavy Duty Full Extension Lock-in/Lock-out Slides
- Slotted Attachment Points
- Packaging With Hole Layout Template Included
- Includes Base Plate
- Heavy duty drawer glides with Lock-in/ Lock-out
Drawer 1 - Maximum utility!
- Outside Dimensions: 10"H x 28"W x 33"L (Including Levers)
- Inner Drawer Box Dimensions: 8.25"H x 26.07"W x 31.17"L
- Inner Drawer Box Volume: 110L
- Weight: ~51lbs
- Drawer Open Distance: 31.5"
Drawer 2 - Pull Out Tray - Doubles as a fridge slide!
- Outside Dimensions: 10"H x 21"W x 33"L (Including Levers)
- Inner Drawer Box Dimensions: 8.25"H x 19.07"W x 31.17"L
- Inner Drawer Box Volume: 80L
- Weight: ~48lbs
- Drawer Open Distance: 31.5"

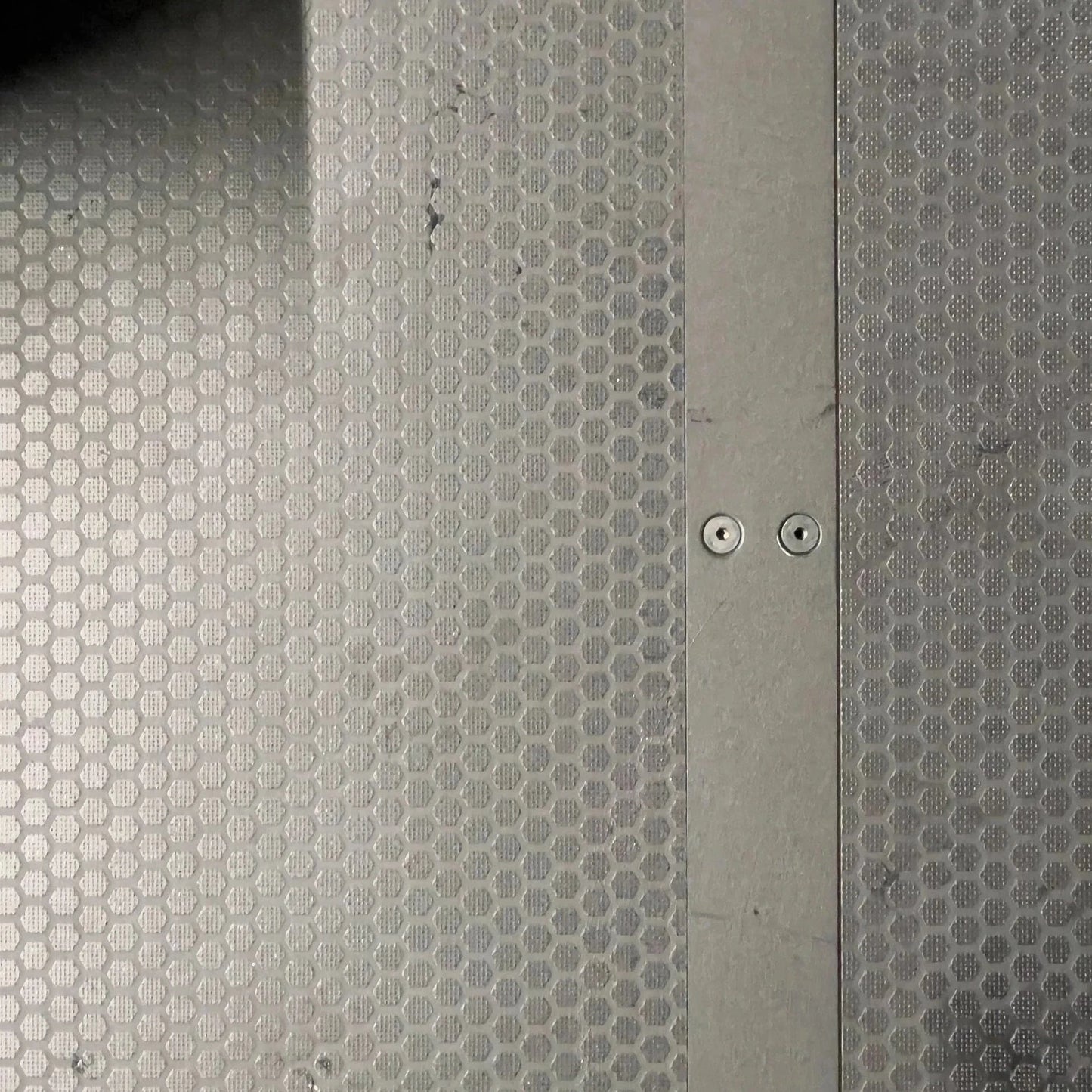

Includes base plate. Made with slip-resistant hex pattern phenolic laminate and a Baltic Birch core you won’t have to worry about the durability of the plate. By using wood, we have saved on the weight an aluminum floor would require to match the deflection levels of Baltic Birch.
Allows access to the the third row fold lever.
Fabricated and shipped by Viato Equipment in approximately 6 weeks.
