Icon Vehicle Dynamics

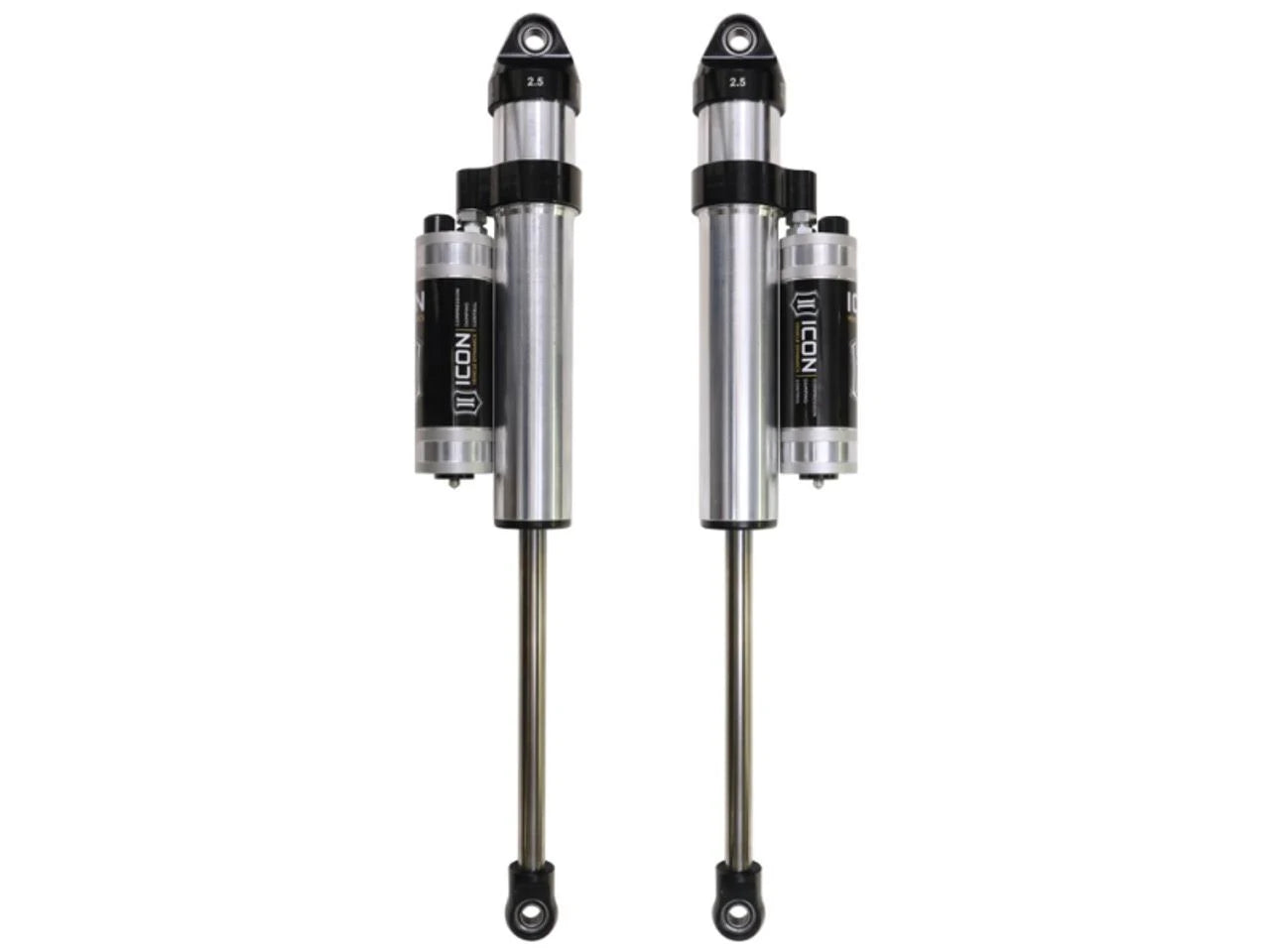

Icon 2.5 Piggyback Reservoir Shocks Pair 77700CP

$1,399.95 USD
$1,399.95 USD
Sale Sold out
Shipping calculated at checkout.
Part Numbers & Details
Specifications
Part Number Lift/Lowered Position Item Quantity Extended Length Compressed Length Travel
77700CP 0-2" Lift Rear Shock Absorber 1 24.360" 15.030" 9.330"

Overview

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON's Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON's unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.

Features & Benefits

  • ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
  • CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
  • 100% Rebuildable
  • 100% Revalveable
  • ICON's internal 'Bump Zone' increases damping by 20% to provide more control as the shock approaches full compression
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Nitrogen charged monotube design with piggyback reservoir
  • One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 7/8 diameter induction hardened, chrome plated shock shaft
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 aircraft grade aluminum CNC machined components

Installation Instructions & Docs

Compatibility List
Year Make Model Drive Position Lift
2018 Chevrolet Silverado 1500 Rear 0-1.5
2017 Chevrolet Silverado 1500 Rear 0-1.5
2016 Chevrolet Silverado 1500 Rear 0-1.5
2015 Chevrolet Silverado 1500 Rear 0-1.5
2014 Chevrolet Silverado 1500 Rear 0-1.5
2013 Chevrolet Silverado 1500 Rear 0-1.5
2012 Chevrolet Silverado 1500 Rear 0-1.5
2011 Chevrolet Silverado 1500 Rear 0-1.5
2010 Chevrolet Silverado 1500 Rear 0-1.5
2009 Chevrolet Silverado 1500 Rear 0-1.5
2008 Chevrolet Silverado 1500 Rear 0-1.5
2007 Chevrolet Silverado 1500 Rear 0-1.5
2019 Chevrolet Silverado 1500 LD Rear 0-1.5
2013 GMC Sierra 1500 Rear 0-1.5
2012 GMC Sierra 1500 Rear 0-1.5
2011 GMC Sierra 1500 Rear 0-1.5
2010 GMC Sierra 1500 Rear 0-1.5
2009 GMC Sierra 1500 Rear 0-1.5
2008 GMC Sierra 1500 Rear 0-1.5
2007 GMC Sierra 1500 Rear 0-1.5
2018 GMC Sierra 1500 4WD Rear 0-1.5
2017 GMC Sierra 1500 4WD Rear 0-1.5
2016 GMC Sierra 1500 4WD Rear 0-1.5
2015 GMC Sierra 1500 4WD Rear 0-1.5
2014 GMC Sierra 1500 4WD Rear 0-1.5
2018 GMC Sierra 1500 RWD Rear 0-1.5
2017 GMC Sierra 1500 RWD Rear 0-1.5
2016 GMC Sierra 1500 RWD Rear 0-1.5
2015 GMC Sierra 1500 RWD Rear 0-1.5
2014 GMC Sierra 1500 RWD Rear 0-1.5
2019 GMC Sierra 1500 Limited 4WD Rear 0-1.5
2019 GMC Sierra 1500 Limited RWD Rear 0-1.5
