Icon Vehicle Dynamics

Icon Vehicle Dynamics 07-18 GM 1500 1-3" STAGE 1 SUSPENSION SYSTEM

Regular price $2,162.84 USD
Regular price $2,162.84 USD Sale price $2,162.84 USD
Sale Sold out
Shipping calculated at checkout.

OVERVIEW

ICON Vehicle Dynamics 2007-2018 GM Silverado/Sierra/ SUV 1500 suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the GM platform’s suspension and addressed any areas where performance could be extracted. The Stage 1 system includes vehicle-specific tuned 2.5 coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 1-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics GM Silverado/Sierra 1500 Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Ships from warehouse - please email info@baselineoverland.com to verify availability

FEATURES & BENEFITS

  • Fits 2WD and 4WD models
  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • Adjustable coilovers allow for f 1-3" of front lift height over stock
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock body with 7/8" shaft
  • High strength alloy CNC machined lower bar pin
  • FK rod end bearings for extended longevity and minimal deflection
  • 2.0 Aluminum Series rear IFP shocks with 5/8" shock shafts

TECH INFO:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #48: SLIGHT MODIFICATIONS TO FACTORY SHOCK MOUNTS MAY BE REQUIRED
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • APPLICATION NOTE #83: TRIMMING OF THE UPPER CONTROL ARM STOP REQUIRED OR DOWN TRAVEL WILL BE LIMITED BY UPPER ARM STOP
  • TECH NOTE: Not compatible with models equipped Magnetic Ride Control
  • TECH NOTE: Included rear shocks are compatible with 0-2" of rear lift on most models
  • TECH NOTE: Not recommended for Hybrid models
  • Ships in multiple boxes

SYSTEM COMPONENTS:

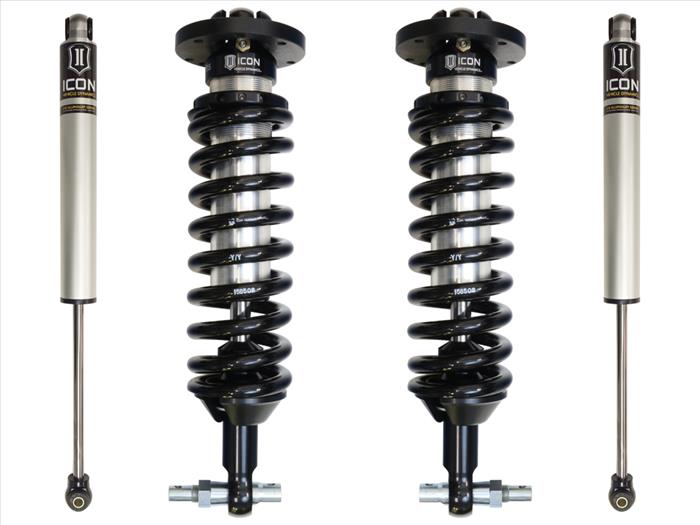

 71505 (QTY: 1) | 07-18 GM 1500 1-3" 2.5 VS IR COILOVER KIT

  • 71505 (QTY: 1) | 07-18 GM 1500 1-3" 2.5 VS IR COILOVER KIT
  • 76526 (QTY: 2) | 07-UP GM 1500 0-2" REAR 2.0 VS IR
