Baja Designs

Baja Designs OnX6 Arc Dual Control LED Light Bar - Universal

Regular price $1,349.95 USD
Regular price Sale price $1,349.95 USD
Sale Sold out
Shipping calculated at checkout.
LIGHT PATTERN
COLOR
SIZE

DESCRIPTION

DESCRIPTION

Now you can have the best of both worlds with the OnX6 Dual Control LED Light Bar. With the addition of another power cord and switch, you have the ability to control the inner and outer sections individually. This configuration provides a versatile package by allowing you to have one light bar with both amber and white light for visibility in all weather conditions.

The arc series dual control utilizes driving/combo lenses on each 10″ section which covers zone 1, 2 and 3, allowing distance and near-field lighting. The driving/combo lens will also help eliminate any dark spots and provide even lighting across the arc radius.

The latest generation of the OnX series is brighter, bolder, and better so you have visibility for after-dark adventures. We use Cree LEDs that last up to 50,000 hours and have a 5000K light temperature; this mimics natural daylight for better trail recognition and less eye fatigue. This bar is equipped with Battery Management Technology to protect your vehicle’s wiring and eliminate flickering as well.

  • Satisfaction Guarantee – 30-Day Money Back Guarantee
  • Limited Lifetime Warranty – Complete Purchase Protection
  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color



Note:
Please note that this light does NOT include a harness and the applicable harness to this light is 640119.


    DETAILED SPECS

    SKU: 523003DC

    Dimensions

    Depth (in.) 4.290
    Height (in.) 2.690
    Length (in.) 30
    Weight (lbs.) 11.450

    Specifications

    Average Rated Life (hr.) 49,930
    Beam Pattern Driving/Combo
    Bezel Material Billet Machined Aluminum
    Brightness (Lumens) 28,938 (High); 23,150 (Low)
    Description Arc; Driving/Combo; Amber/Clear
    Housing Color Black
    Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
    Lens Color Amber/Clear
    Lighting Modes Hardcoated Polycarbonate
    Light Quantity 1
    Lens Material High Beam/Low Beam
    Lighting Quantity 18
    Lighting Type LED
    Lighting Technology Forward Projecting
    Mounting Hardware Description Mounting Brackets
    Mounting Hardware Included Yes
    Mounting Hardware Material Stainless Steel
    Overvoltage Protection Built-In

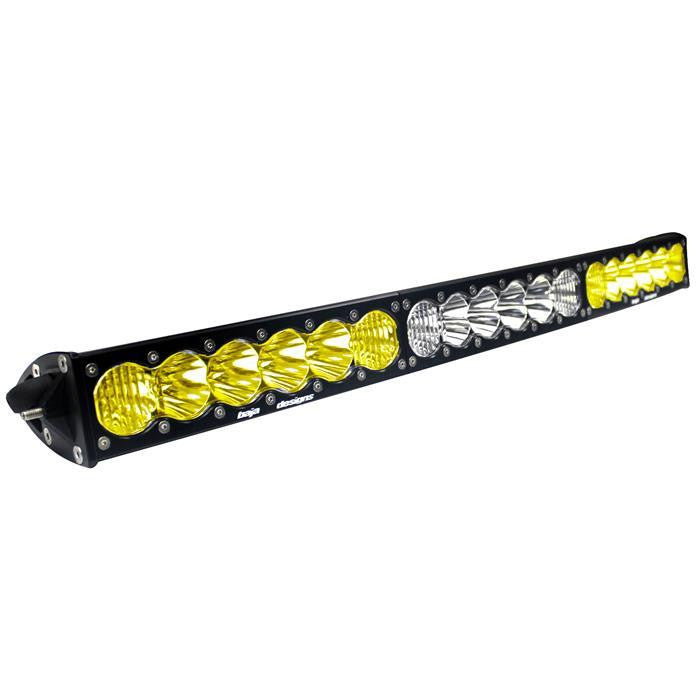

    Product Type OnX6+ 30 Inch Arc Dual Control LED Light Bar
    Universal or Specific Universal
    Wiring Harness Description Hi-Low Dongle
    Wiring Harness Included No

    Standards & Compliance

    Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
    Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
    Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

    SKU: 524003DC

    Dimensions

    Depth (in.) 4.29
    Height (in.) 2.69
    Length (in.) 40
    Weight (lbs.) 15.05

    Specifications

    Amperage Rating (A) 26.8 (High); 22.4 (Low)
    Average Rated Life (hr.) 49,930
    Beam Pattern Driving/Combo
    Bezel Material Billet Machined Aluminum
    Brightness (Lumens) 39,220 (high); 32,760 (Low)
    Description Arc; Driving/Combo; Amber/Clear
    Housing Color Black
    Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
    Lens Color Amber/Clear
    Lighting Modes Hardcoated Polycarbonate
    Light Quantity 1
    Lens Material High Beam/Low Beam
    Lighting Quantity 24
    Lighting Type LED
    Lighting Technology Forward Projecting
    Mounting Hardware Description Mounting Brackets
    Mounting Hardware Included Yes
    Mounting Hardware Material Stainless Steel
    Overvoltage Protection Built-In
    Product Type OnX6+ 40 Inch Arc Dual Control LED Light Bar
    Universal or Specific Universal
    Wattage (W) 340 (High); 284 (Low)
    Wiring Harness Description Hi-Low Dongle
    Wiring Harness Included No

    Standards & Compliance

    Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
    Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
    Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

    SKU: 525003DC

    Dimensions

    Depth (in.) 4.29
    Height (in.) 2.69
    Length (in.) 50
    Weight (lbs.) 18.65

    Specifications

    Amperage Rating (A) 28.2 (High)
    Average Rated Life (hr.) 49,930
    Beam Pattern Driving/Combo
    Bezel Material Billet Machined Aluminum
    Brightness (Lumens) 39,910 (high)
    Description Arc; Driving/Combo; Amber/Clear
    Housing Color Black
    Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
    Lens Color Amber/Clear
    Lighting Modes Hardcoated Polycarbonate
    Light Quantity 1
    Lens Material High Beam
    Lighting Quantity 30
    Lighting Type LED
    Lighting Technology Forward Projecting
    Mounting Hardware Description Mounting Brackets
    Mounting Hardware Included Yes
    Mounting Hardware Material Stainless Steel
    Overvoltage Protection Built-In

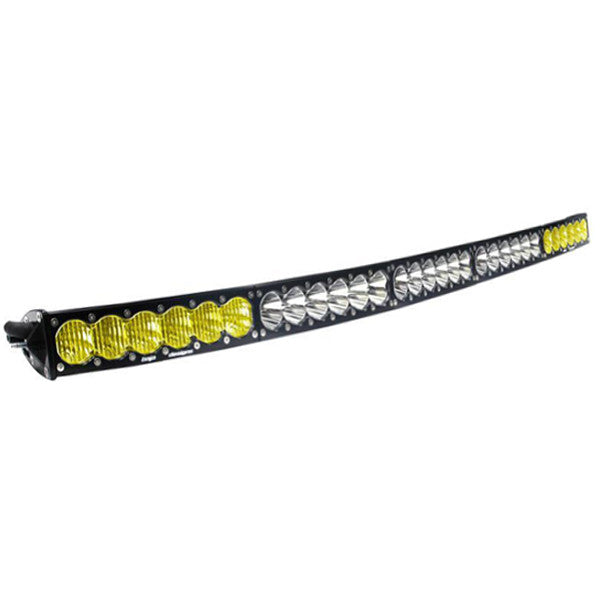

    Product Type OnX6+ 50 Inch Arc Dual Control LED Light Bar
    Universal or Specific Universal
    Wattage (W) 346 (High)
    Wiring Harness Included No

    Standards & Compliance

    Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
    Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
    Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
