Now you can have the best of both worlds with the OnX6 Dual Control LED Light Bar. With the addition of another power cord and switch, you have the ability to control the inner and outer sections individually. This configuration provides a versatile package by allowing you to have one light bar with both amber and white light.
The wide/cornering pattern used on the OnX6 Dual Control provides a dedicated zone 1/2 option for near-field visibility while the spot lens also adds dedicated distance for zone 3/4 lighting. This combination allows drivers to use one light for multiple lighting zones.
The latest generation of the OnX series is brighter, bolder, and better so you have visibility for after-dark adventures. We use Cree LEDs that last up to 50,000 hours and have a 5000K light temperature; this mimics natural daylight for better trail recognition and less eye fatigue. These light bars are completely weatherproof and have special battery management technology to save power, eliminate flickering, and protect your vehicle’s wiring system. The OnX6 Dual Control LED Light Bar LED Light Bar is BRIGHTER, BOLDER, BETTER.
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
DETAILED SPECS

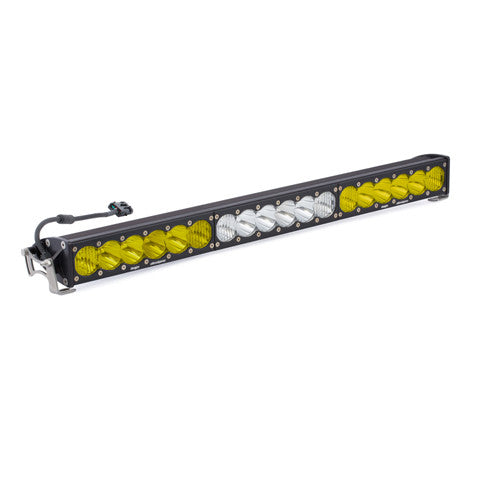

SKU: 463014
Dimensions
Depth (in.) |
4.290 |
Height (in.) |
2.690 |
Length (in.) |
30 |
Weight (lbs.) |
11.450 |
Specifications
Average Rated Life (hr.) |
49,930 |
Beam Pattern |
Driving/Combo |
Bezel Material |
Billet Machined Aluminum |
Brightness (Lumens) |
28,938 (High); 23,150 (Low) |
Description |
Straight; Driving/Combo; Amber/Clear |
Housing Color |
Black |
Housing Material |
Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
Lens Color |
Amber/Clear |
Lighting Modes |
Hardcoated Polycarbonate |
Light Quantity |
1 |
Lens Material |
High Beam/Low Beam |
Lighting Quantity |
18 |
Lighting Type |
LED |
Lighting Technology |
Forward Projecting |
Mounting Hardware Description |
Mounting Brackets |
Mounting Hardware Included |
Yes |
Mounting Hardware Material |
Stainless Steel |
Overvoltage Protection |
Built-In |
Product Type |
OnX6+ 30 Inch Dual Control LED Light Bar |
Universal or Specific |
Universal |
Wiring Harness Description |
Hi-Low Dongle |
Wiring Harness Included |
No |
Standards & Compliance
Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Water Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Impact Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |

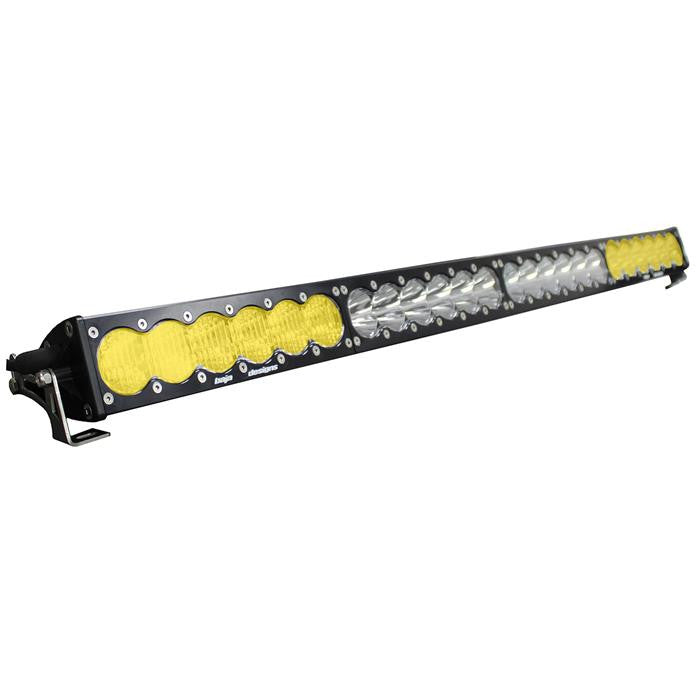

SKU: 464014
Dimensions
Depth (in.) |
4.29 |
Height (in.) |
2.69 |
Length (in.) |
40 |
Weight (lbs.) |
15.05 |
Specifications
Amperage Rating (A) |
26.8 (High); 22.4 (Low) |
Average Rated Life (hr.) |
49,930 |
Beam Pattern |
Driving/Combo |
Bezel Material |
Billet Machined Aluminum |
Brightness (Lumens) |
39,220 (high); 32,760 (Low) |
Description |
Straight; Driving/Combo; Amber/Clear |
Housing Color |
Black |
Housing Material |
Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
Lens Color |
Amber/Clear |
Lighting Modes |
Hardcoated Polycarbonate |
Light Quantity |
1 |
Lens Material |
High Beam/Low Beam |
Lighting Quantity |
24 |
Lighting Type |
LED |
Lighting Technology |
Forward Projecting |
Mounting Hardware Description |
Mounting Brackets |
Mounting Hardware Included |
Yes |
Mounting Hardware Material |
Stainless Steel |
Overvoltage Protection |
Built-In |
Product Type |
OnX6+ 40 Inch Dual Control LED Light Bar |
Universal or Specific |
Universal |
Wattage (W) |
340 (High); 284 (Low) |
Wiring Harness Description |
Hi-Low Dongle |
Wiring Harness Included |
No |
Standards & Compliance
Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Water Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Impact Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |

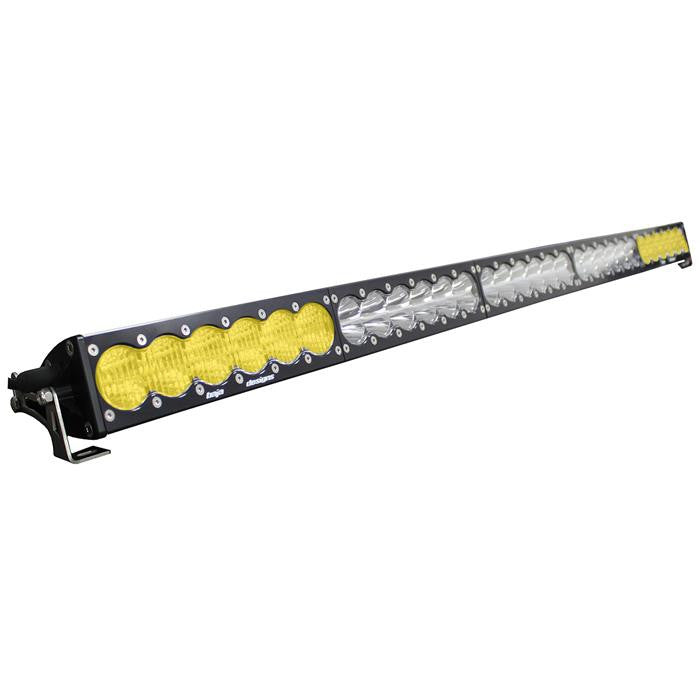

SKU: 465014
Dimensions
Depth (in.) |
4.29 |
Height (in.) |
2.69 |
Length (in.) |
50 |
Weight (lbs.) |
18.65 |
Specifications
Amperage Rating (A) |
28.2 (High) |
Average Rated Life (hr.) |
49,930 |
Beam Pattern |
Driving/Combo |
Bezel Material |
Billet Machined Aluminum |
Brightness (Lumens) |
39,910 (high) |
Description |
Straight; Driving/Combo; Amber/Clear |
Housing Color |
Black |
Housing Material |
Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
Lens Color |
Amber/Clear |
Lighting Modes |
Hardcoated Polycarbonate |
Light Quantity |
1 |
Lens Material |
High Beam |
Lighting Quantity |
30 |
Lighting Type |
LED |
Lighting Technology |
Forward Projecting |
Mounting Hardware Description |
Mounting Brackets |
Mounting Hardware Included |
Yes |
Mounting Hardware Material |
Stainless Steel |
Overvoltage Protection |
Built-In |
Product Type |
OnX6+ 50 Inch Dual Control LED Light Bar |
Universal or Specific |
Universal |
Wattage (W) |
346 (High) |
Wiring Harness Included |
No |
Standards & Compliance
Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Water Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Impact Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
